  • Drawer Magnet 4" x 4" With Made to Order Flanges

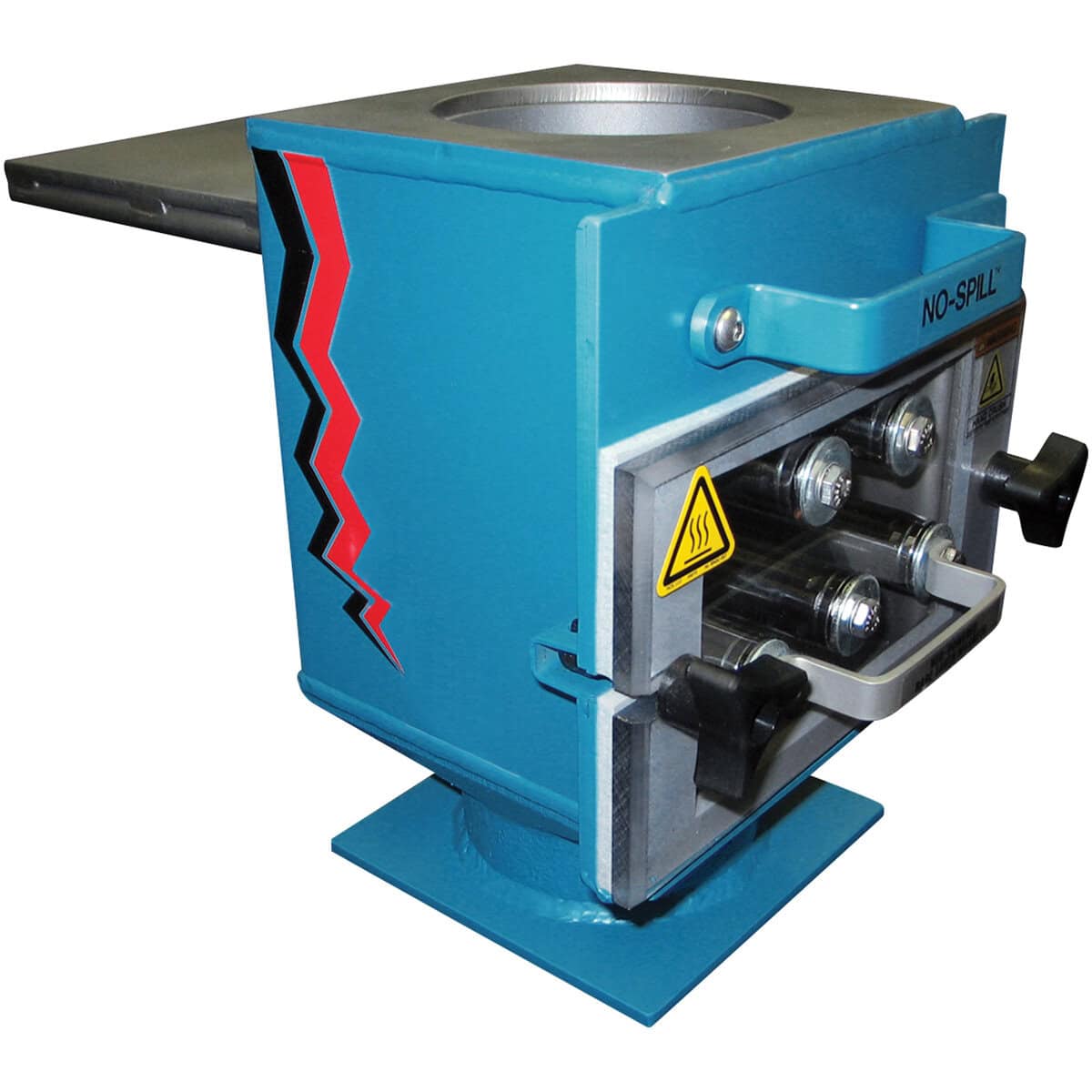

Drawer Magnet 4" x 4" With Made to Order Flanges - Image 1

Drawer Magnet 4″ x 4″ With Made to Order Flanges

Item # 133917
Item is not returnable
$757.00 / EACH

Customized Magnet Housing and Rare Earth Drawer Magnet, 4″ x 4″ Stainless Steel Square Housing with Customer Specified Mild Steel Top and Bottom Mounting Flanges. Includes “No-Spill”(TM) Slide Gate. for Machines with 7/8″ to 2” Feed Throat Openings.
** Requires Flange Form & Custom Part Number **
*** Item is Made to Your Specifications ***

Item Features

  • Minimize Downtime: the slide gate enables you to stop material flow and clean the magnet without sacrificing productivity
  • 180°F Temperature-compensated Rare Earth Neodymium Magnets Made for Injection Molding Machines
  • 5,000 Gauss Magnetic Strength
  • Two rows of 25mm (1") tubes optimize the magnetic circuit, ensuring free material flow
  • 4" x 4" Heavy Duty 11 ga. Stainless Steel Housing, can support symmetrical compression loads up to 10,000 lb.
  • Carbon Steel Flanges – 1/4" thickness
  • EPDM Drawer Gasket resists heat aging
  • Clear Polycarbonate Drawer Front allows easy viewing of materials
  • High-torque Nylon Drawer Knobs
  • Available Options: Purge Hopper, Rear Dump Tube, Liquid Color Port, 392°F High Temperature Magnets – Inquire
