Surge Bin, IMS Heavy Duty 86 cu ft, 2,408 lb 80% Capacity at 35lb/cu ft with 45° Slope
Item #
144004
$4,987.00
/ EACH

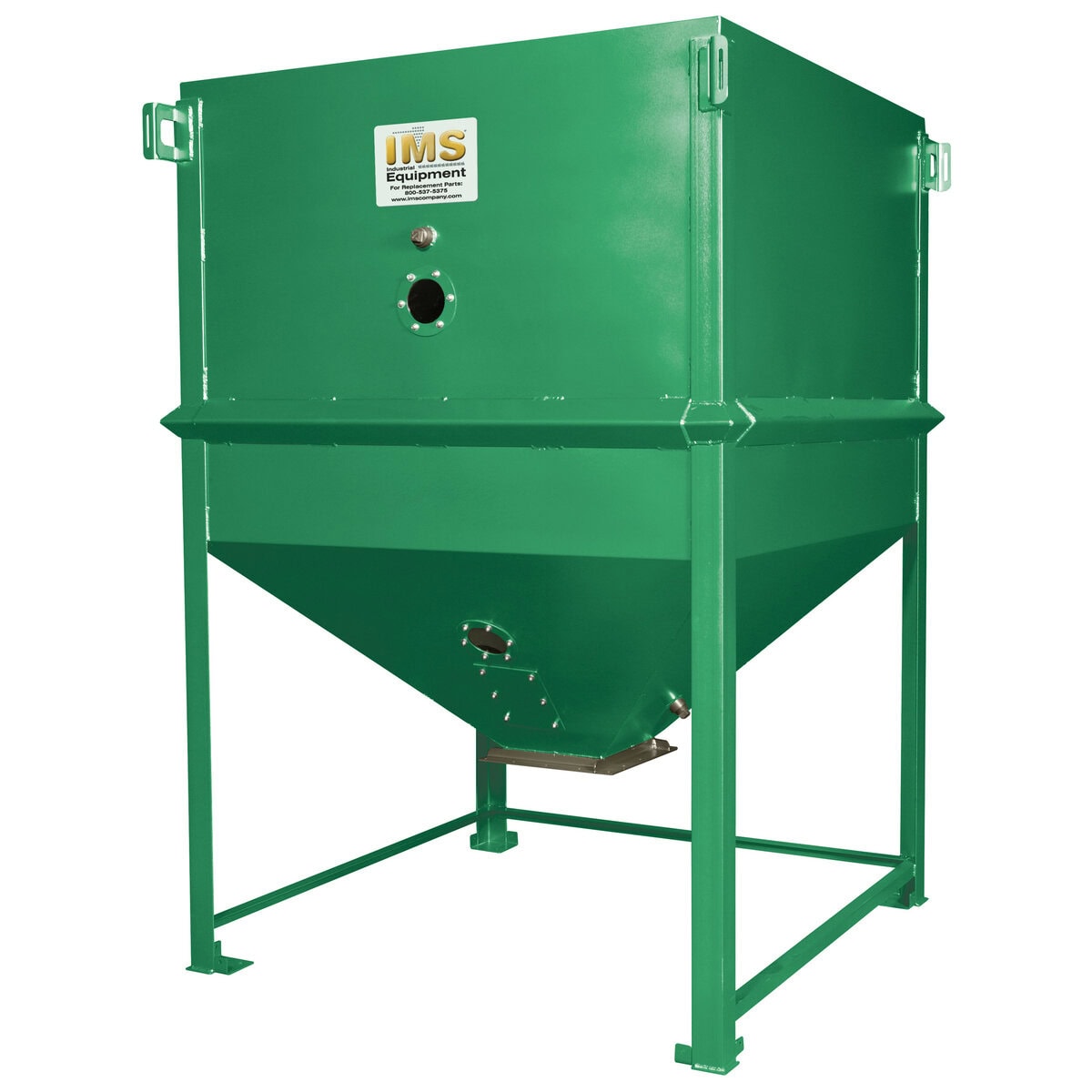

Surge Bin, IMS Heavy Duty 30 cu ft, 1,008 lb 80% Capacity at 36lb/cu ft with 60° Slope
Item #
144002
Item is returnable
$3,323.00
/ EACH
Surge Bin, IMS Heavy Duty 30 cu ft, 1,008 lb 80% Capacity at 36lb/cu ft with 60° Slope and Lid with Access Door and Loader Pattern. **** Made to Your Specification ****** **** Bin is Incomplete Without the Addition of Discharge Components, Contact IMS for Details ****
- Dimensions: 54" x 54" x 64.5"
- Lid Door: 12" x 14" Hinged
- Loader Pattern: Made to Order
- Material: Painted Carbon Steel
- Paint Spec: IMS Green
- Discharge: 12" Square
- Windows: One High and One Low
- Floor Clearance: 20"
- Lifting Lugs: Four Per Bin
- Weight: 475 lb
- Option: 304 Stainess and Custom Paint
- Option: Leg Extensions and Platforms
- Option: High & Low Level Sensors
- Option: Various Discharge Styles/Sizes
- Capacity: 30 cu ft (1008 lb)
- Hopper Slope Angle: 60°
Item Documents
- Item Catalog Page 626
-
-
Surge Bin, IMS Heavy Duty 514 cu ft, 14,392 lb 80% Capacity at 35lb/cu ft with 60° Slope
Item # 144027$23,489.00 / EACH -
Surge Bin, IMS Heavy Duty 58 cu ft, 1,624 lb 80% Capacity at 35lb/cu ft with 45° Slope
Item # 142709$3,905.00 / EACH -
Surge Bin, IMS Heavy Duty 457 cu ft, 12,796 lb 80% Capacity at 35lb/cu ft with 60° Slope
Item # 144025$17,173.00 / EACH -
Surge Bin, IMS Heavy Duty 400 cu ft, 11,200 lb 80% Capacity at 35lb/cu ft with 45° Slope
Item # 144022$15,122.00 / EACH -
Heavy Duty Surge Bin Cover Option, 1/3 and 2/3 Split Top
Item # 143879$552.00 / EACH -
Surge Bin, IMS Heavy Duty 457 cu ft, 12,796 lb 80% Capacity at 35lb/cu ft with 45° Slope
Item # 144024$17,075.00 / EACH -
Surge Bin, IMS Heavy Duty 257 cu ft, 7,196 lb 80% Capacity at 35lb/cu ft with 45° Slope
Item # 144016$10,857.00 / EACH -
Surge Bin, IMS Heavy Duty 286 cu ft, 8,008 lb 80% Capacity at 35lb/cu ft with 45° Slope
Item # 144018$12,311.00 / EACH -
Surge Bin, IMS Heavy Duty 286 cu ft, 8,008 lb 80% Capacity at 35lb/cu ft with 60° Slope
Item # 144019$12,371.00 / EACH -
Indicator Panel for IMS Heavy Duty Surge Bin
Item # 142711$1,089.00 / EACH -
Surge Bin, IMS Heavy Duty 145 cu ft, 4,060 lb 80% Capacity at 35lb/cu ft with 45° Slope
Item # 144008$6,780.00 / EACH
