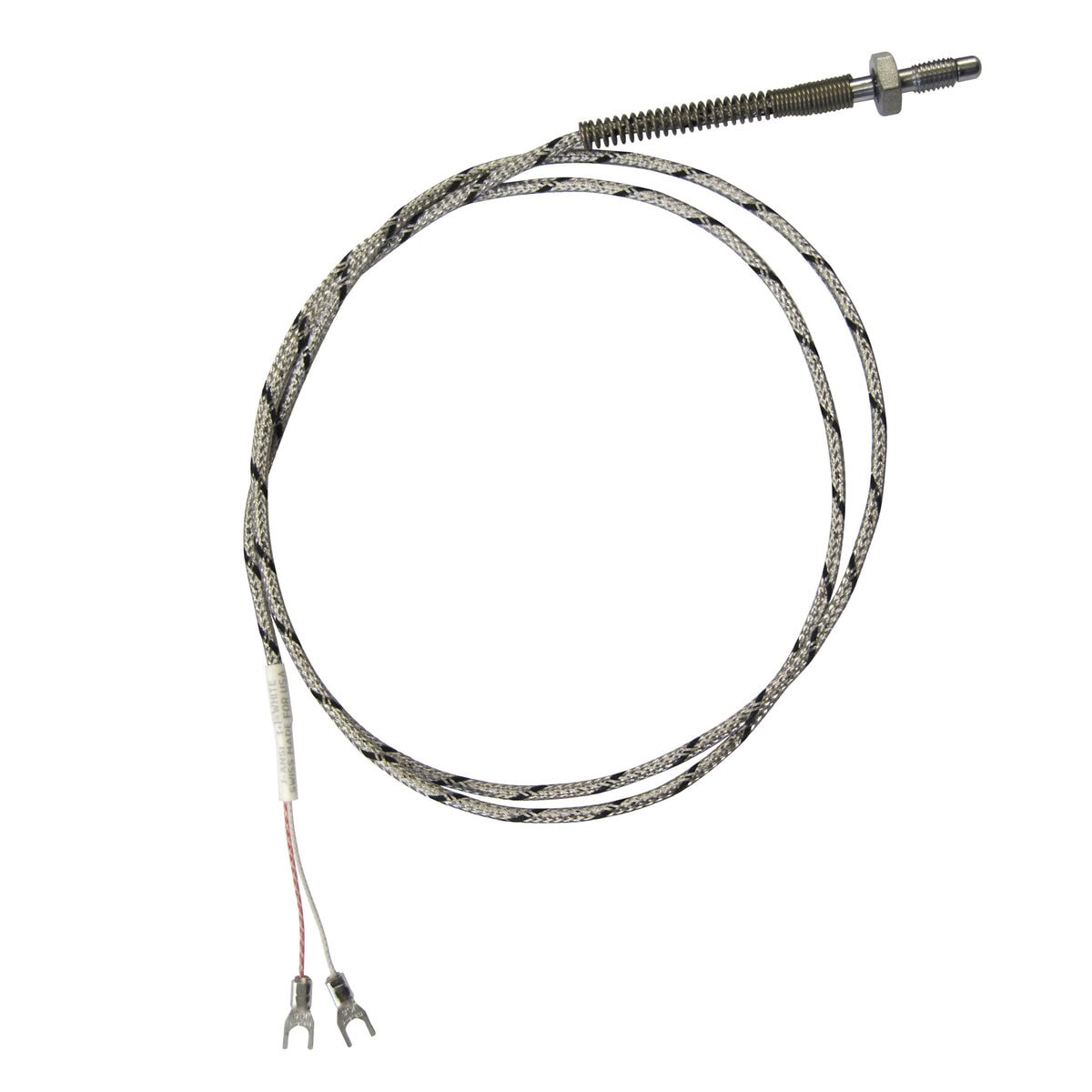

Thermocouple, Nozzle/Bolt Style, Type J, 1/4"-28 Thread, 3/16" Tip, 96" SS Leads, Spade Lugs, Ungrounded - Image 1

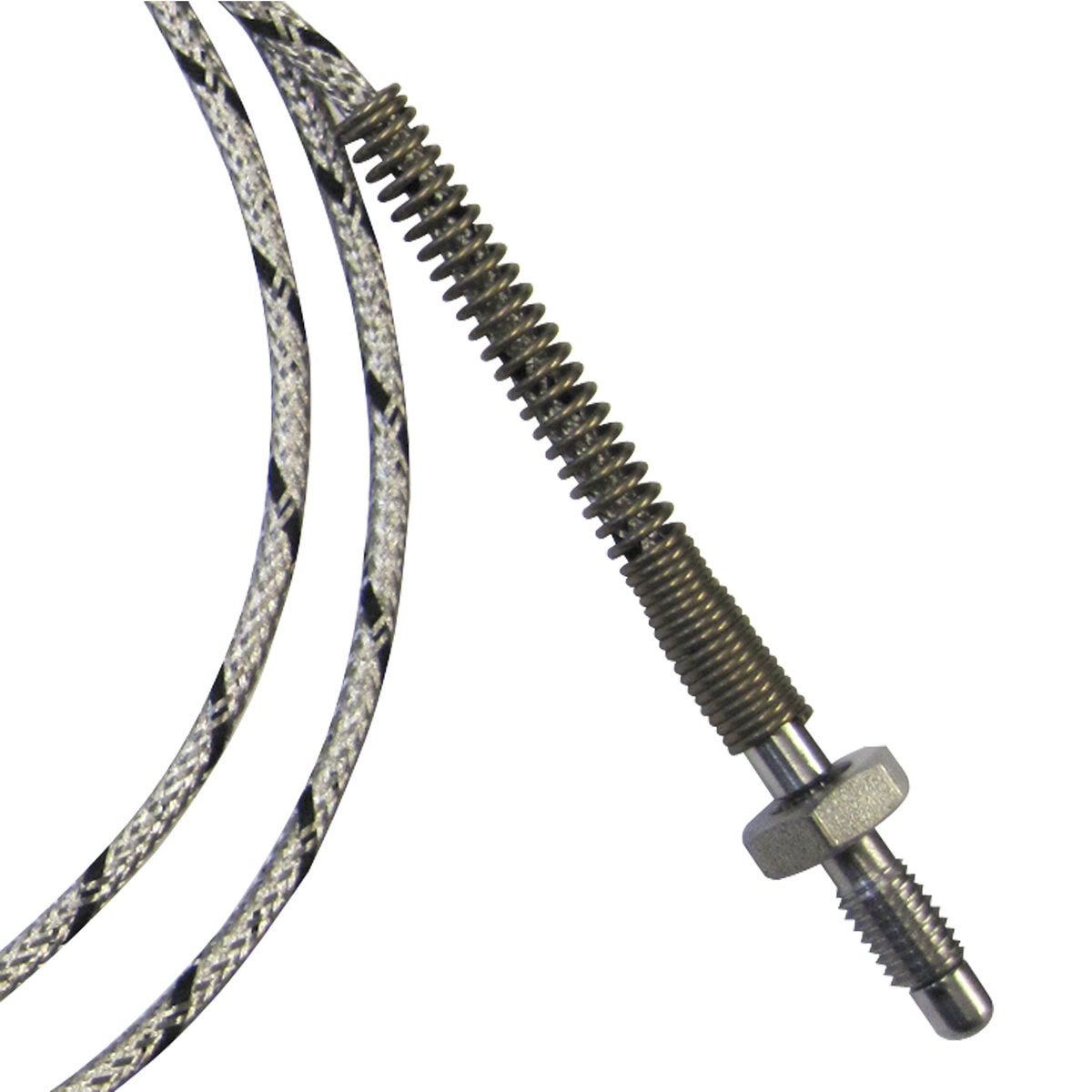

Thermocouple, Nozzle/Bolt Style, Type J, 1/4"-28 Thread, 3/16" Tip, 96" SS Leads, Spade Lugs, Ungrounded - Image 2
Thermocouple, Nozzle/Bolt Style, Type J, 1/4"-28 Thread, 3/16" Tip, 96" SS Leads, Spade Lugs, Ungrounded - Image 1Thermocouple, Nozzle/Bolt Style, Type J, 1/4"-28 Thread, 3/16" Tip, 96" SS Leads, Spade Lugs, Ungrounded - Image 2

Thermocouple, Nozzle/Bolt Style, Type J, 1/4″-28 Thread, 3/16″ Tip, 96″ SS Leads, Spade Lugs, Ungrounded

Item # 146516
Item is returnable
$45.00 / EACH

Thermocouple, Nozzle/Bolt Type, Type J, Ungrounded, 1/4″-28 UNF Thread, 3/16″ Tip OD, 96″ Stainless Steel Braided Reinforced Flex Leads with Spade Lugs, Heavy Duty Strain Relief, 7/16″ Hex Fitting, Stranded Wire.

  • Thermocouple Tolerance Accy: EN60584/IEC584 Class 1
  • Max. Operating Temp: 842F (450C)
  • Required Hole Depth: Minimum 1/4"
  • Lead Wire: Kapton Coated Fiberglass with Stainless Steel Overbraid
  • Optimized Tip Shape for Max Heat Transfer
  • Made in Switzerland
