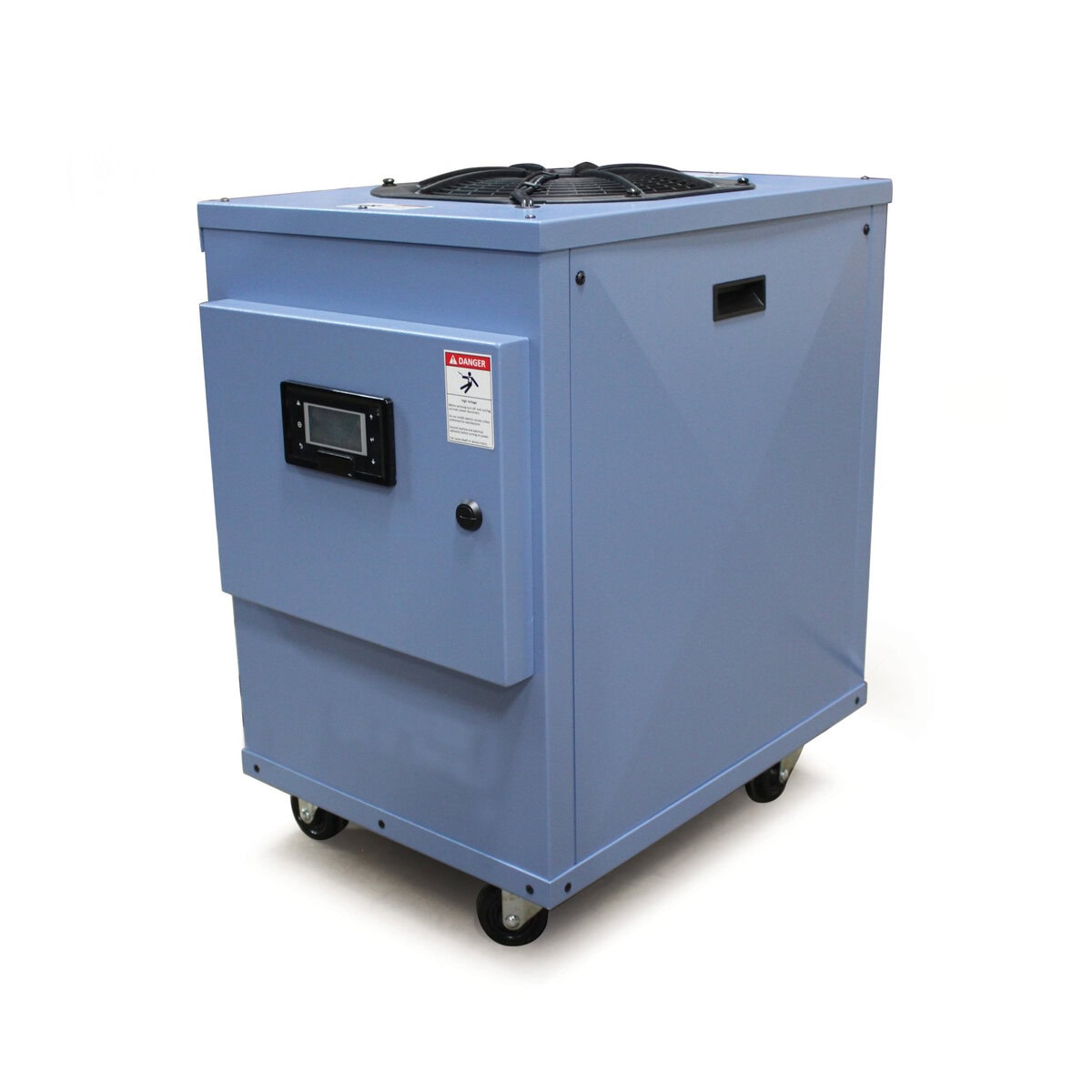

Chiller, Air Cooled, Hydra EQ Series, 2 Ton, 460/60/3 - Image 1

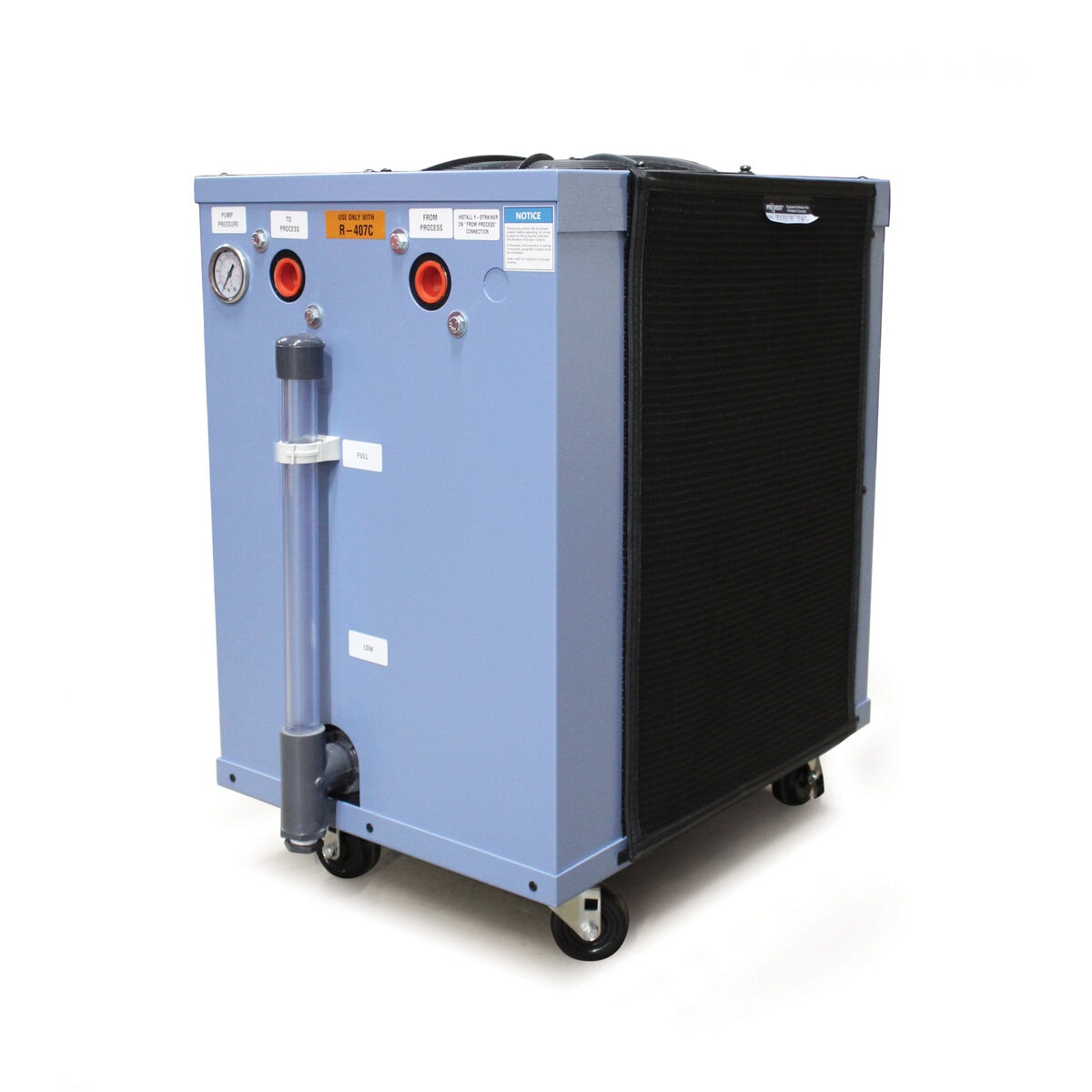

Chiller, Air Cooled, Hydra EQ Series, 2 Ton, 460/60/3 - Image 2

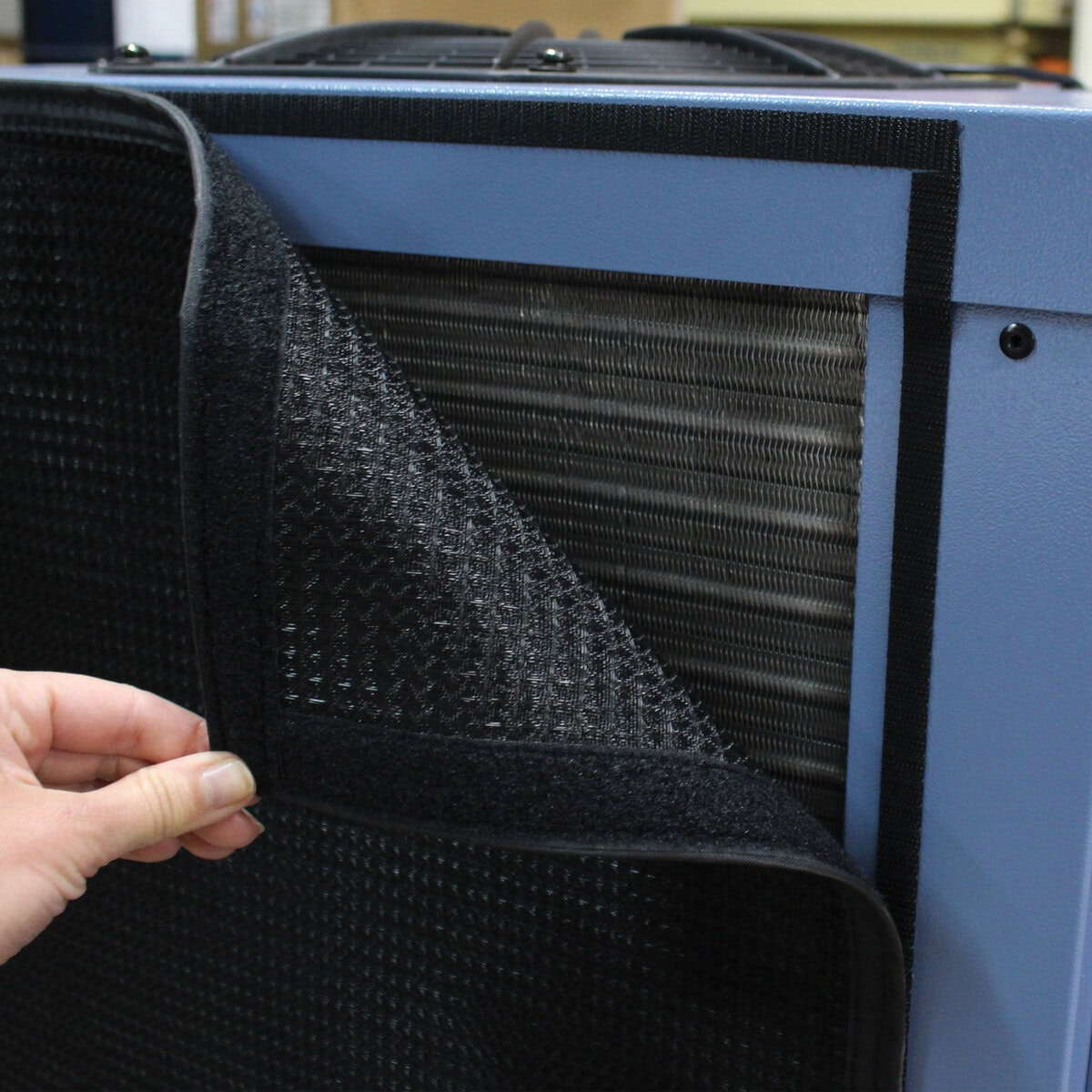

Chiller, Air Cooled, Hydra EQ Series, 2 Ton, 460/60/3 - Image 3

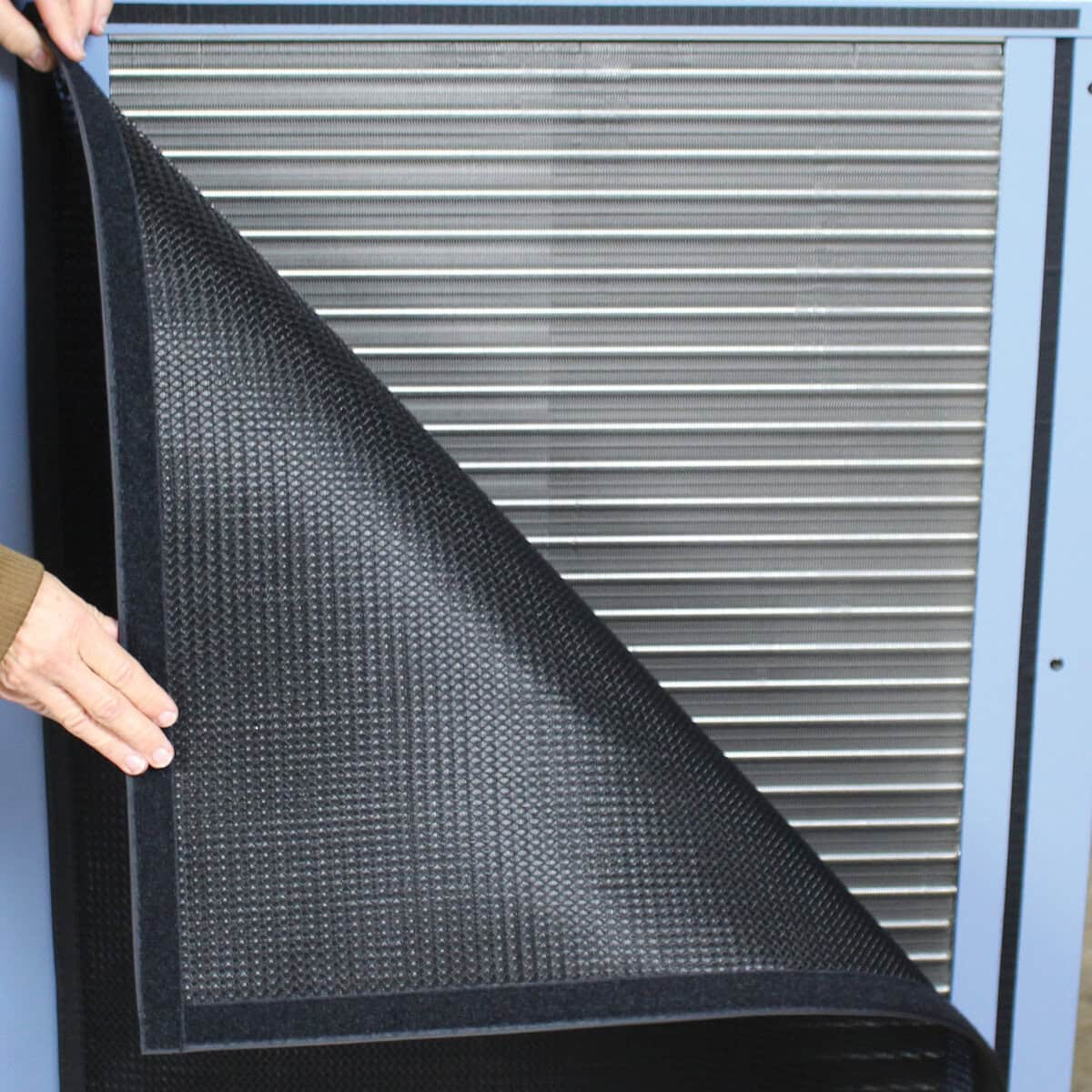

Chiller, Air Cooled, Hydra EQ Series, 2 Ton, 460/60/3 - Image 4
Chiller, Air Cooled, Hydra EQ Series, 2 Ton, 460/60/3 - Image 1 Chiller, Air Cooled, Hydra EQ Series, 2 Ton, 460/60/3 - Image 2 Chiller, Air Cooled, Hydra EQ Series, 2 Ton, 460/60/3 - Image 3 Chiller, Air Cooled, Hydra EQ Series, 2 Ton, 460/60/3 - Image 4

Chiller, Air Cooled, Hydra EQ Series, 2 Ton, 460/60/3

Item # 149621
Item is returnable
$10,660.00 / EACH

Chiller, Air Cooled, Hydra Series 2 Ton, Rating at 50F Leaving Fluid Temperature at 95F Ambient. 460/60/3 Volt, Set Point Range 20F-65F Complete with Digital Controls, Electronic Hot Gas Bypass, Stainless Steel Brazed Plate Evaporator, and Internal Valved Bypass Line to Protect the Pump and Evaporator. Y-Strainer Protects Evaporator from Contamination. Casters Included.

  • Btu/Hour: 24,000
  • Pump: 1hp, 5gpm at 39 psi
  • Refrigerant: R454B
  • Nonferrous Water Circuit Construction
  • Dual Led Digital Displays
  • Diagnostic and Operation Lights Standard
  • Single Scroll Compressor
  • Heavy Gauge Painted Steel Cabinet
  • Insulated Polyethylene Reservoir
  • Single Point Main Power Block
  • 9 Minimum Circuit Amps at 460/60/3
  • Dimensions: 44"H, 24"W, 40"D
  • Weight: 420lb Crated
  • Warranty: 18 Months Parts, 12 Months Labor
  • Tested Under Full Load Conditions
