Item # 149622 in Chillers, Air Cooled
$10,965.00 ea
Description

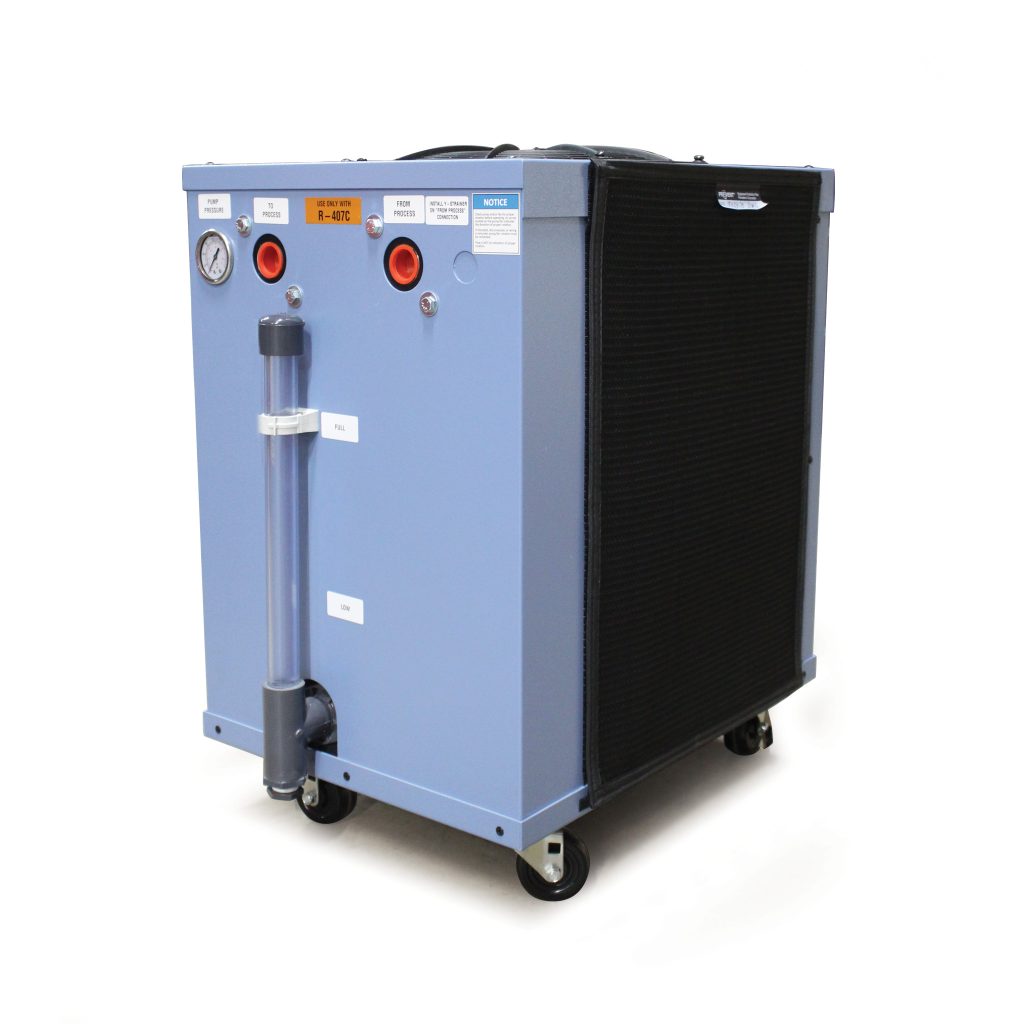

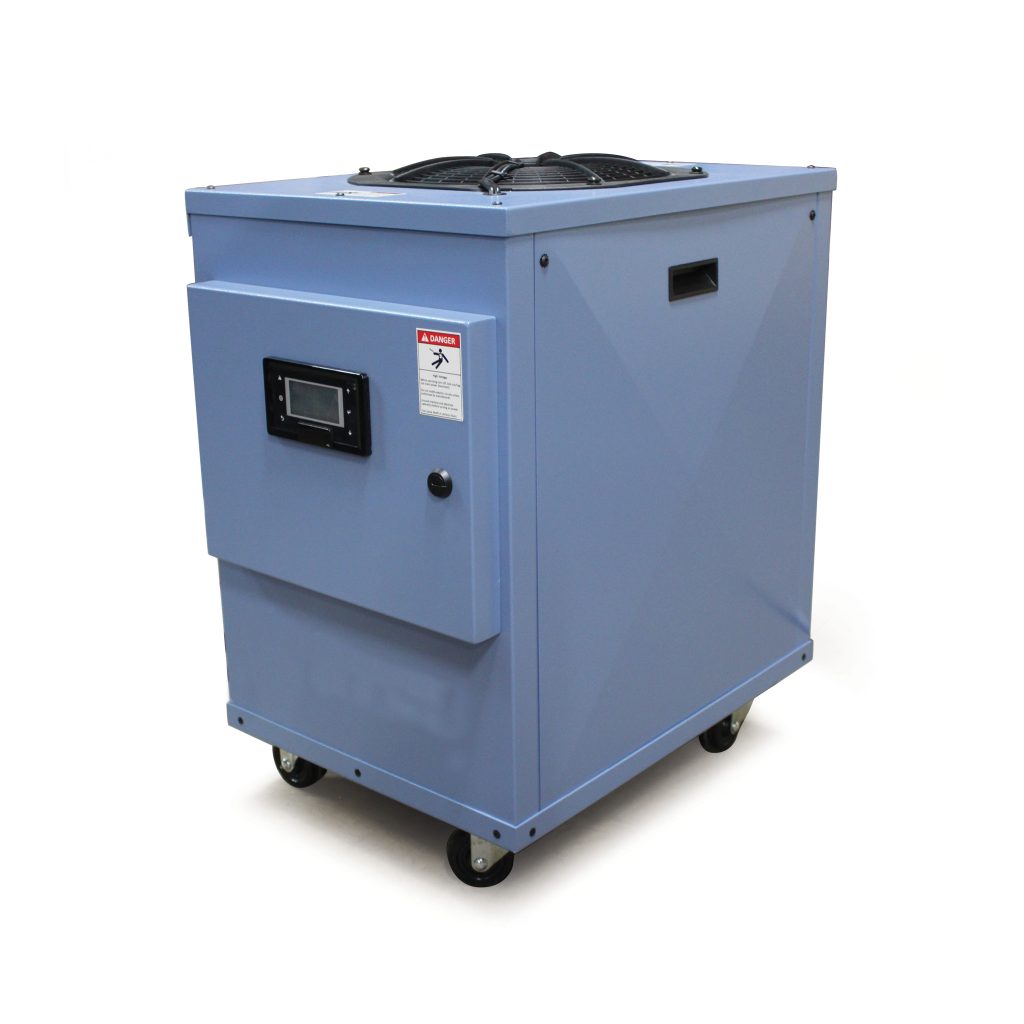

Chiller, Air Cooled, Hydra Series 3 Ton, Rating at 50F Leaving Fluid Temperature at 95F Ambient. 230/60/3 Volt, Set Point Range 20F-65F Complete with Digital Controls, Electronic Hot Gas Bypass, Stainless Steel Brazed Plate Evaporator, and Internal Valved Bypass Line to Protect the Pump and Evaporator. Y-Strainer Protects Evaporator from Contamination. Casters Included.
Specifications
- Btu/Hour: 36, 000
- Pump: 1hp, 7gpm at 38 psi
- Refrigerant: R454B
- Nonferrous Water Circuit Construction
- Dual Led Digital Displays
- Diagnostic and Operation Lights Standard
- Single Scroll Compressor
- Heavy Gauge Painted Steel Cabinet
- Insulated Polyethylene Reservoir
- Single Point Main Power Block
- 24 Minimum Circuit Amps at 230/60/3
- Dimensions: 44"H, 24"W, 40"D
- Weight: 430lb Crated
- Warranty: 18 Months Parts, 12 Months Labor
- Tested Under Full Load Conditions
