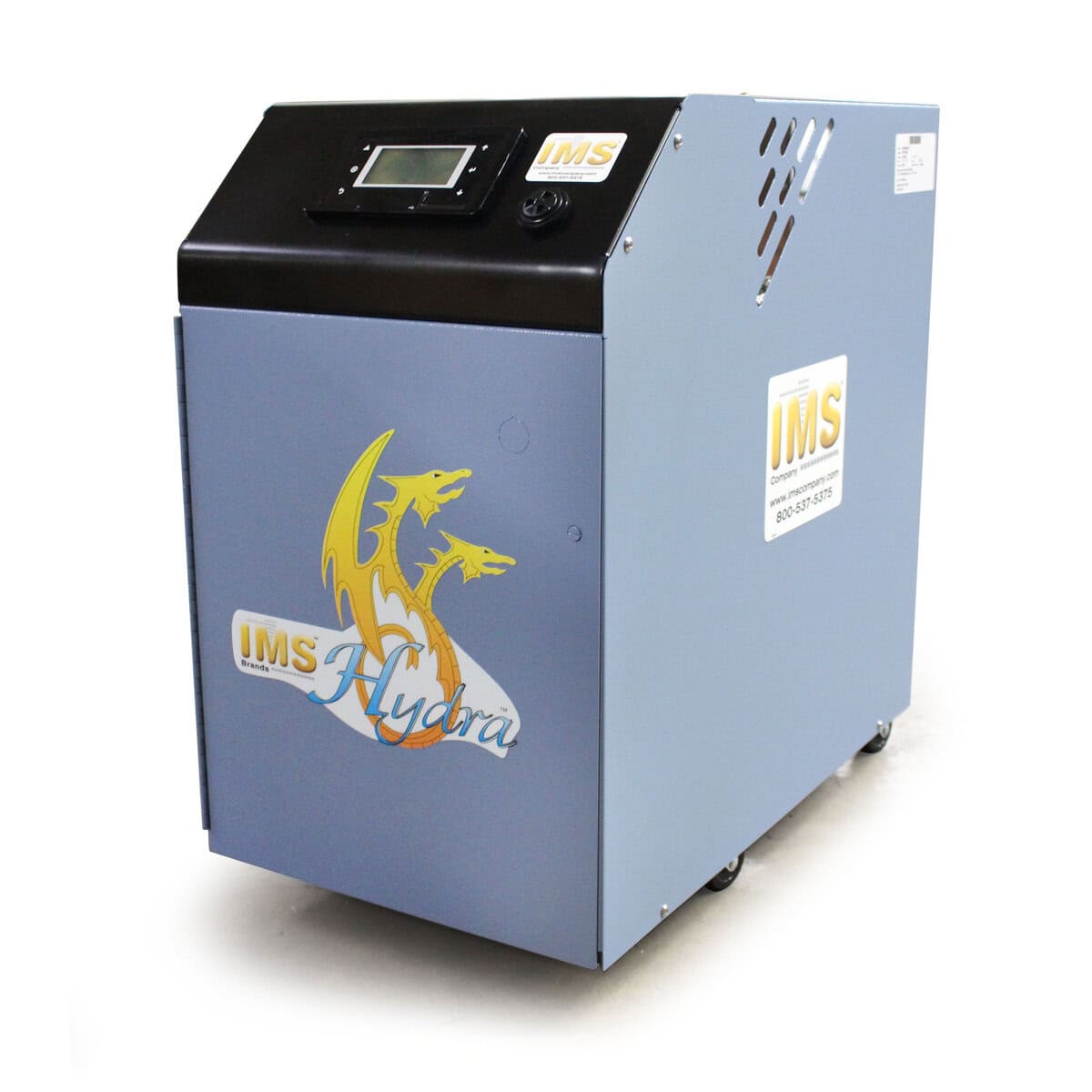

Circulator, Water, Hydra RQT0920, 9kW, 230/60/3 - Image 1

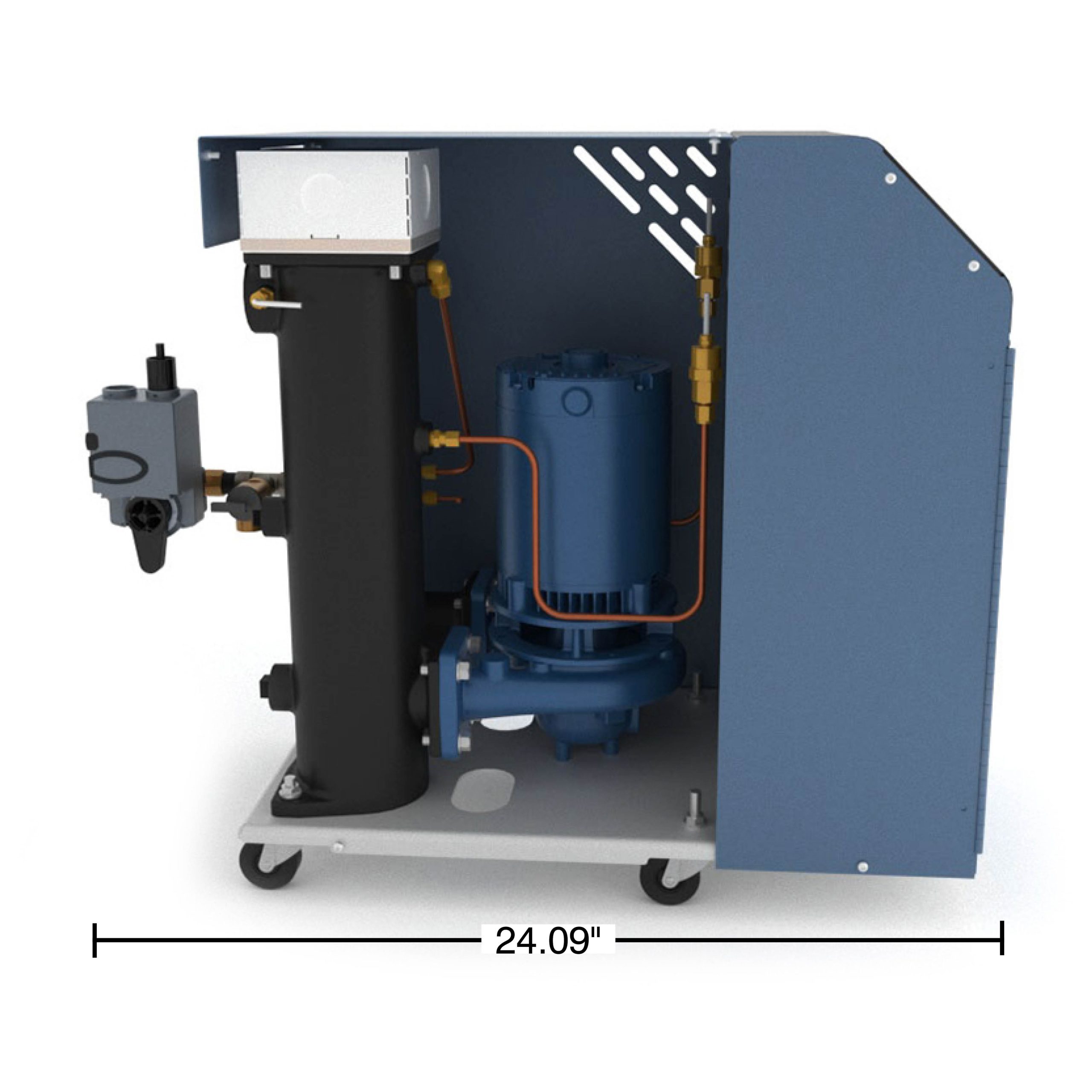

Circulator, Water, Hydra RQT0920, 9kW, 230/60/3 - Image 2

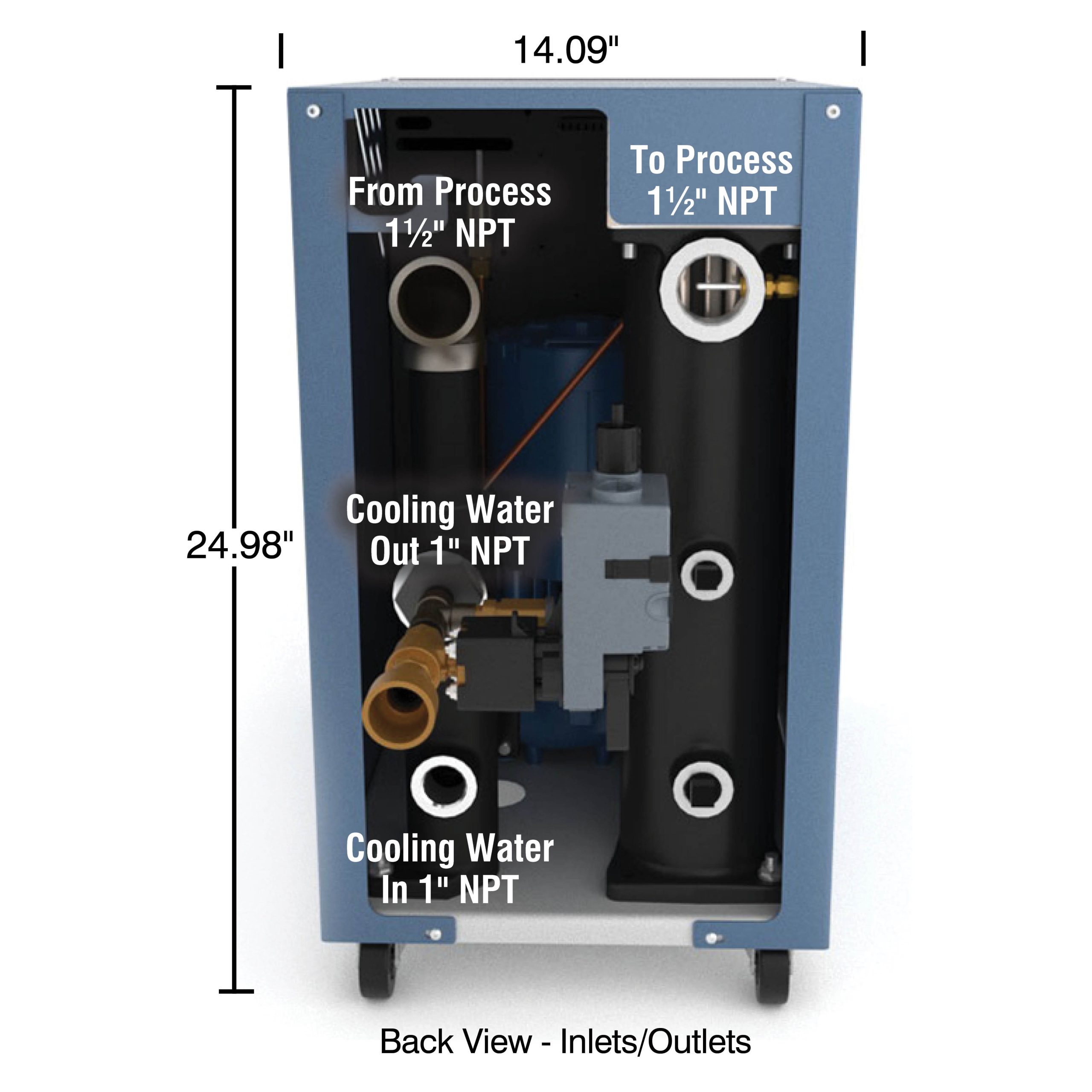

Circulator, Water, Hydra RQT0920, 9kW, 230/60/3 - Image 3
Circulator, Water, Hydra RQT0920, 9kW, 230/60/3 - Image 1 Circulator, Water, Hydra RQT0920, 9kW, 230/60/3 - Image 2 Circulator, Water, Hydra RQT0920, 9kW, 230/60/3 - Image 3

Circulator, Water, Hydra RQT0920, 9kW, 230/60/3

Item # 174732
Item is returnable
$4,070.00 / EACH

Circulator, Mold Temperature Controller, Pressurized, Hydra Model RQT0920, 230/60/3 Volts, 2 hp Pump, 9 kW Heating Element, Advanced Controller, 1/2″ Modulating Cooling Valve.

  • Operating Range 50-250 F
  • Water Flow 75 gpm at 30 psi
  • Modulating Cooling Valve, 1/2", CVS=2.9
  • Supply and Return Temperature Display
  • Supply and Return Pressure Display
  • Digital Flow Meter Displays Estimated Fluid Flow and Monitors Flow to the Mold
  • Leak-Proof Twin Tube Cast Pump Assembly
  • Silicon Carbide Pump Seal with Seal Flush Internal Bypass Line for Low Flow
  • Adjustable Inlet Cooling Water Safety Switch
  • Microprocessor Controller
  • 28 Full Load Amps
  • 3 Year Limited Parts and Labor Warranty
  • Lifetime Pump/Heater Casting
  • Lifetime Standard Pump Seal
  • 14.09" Wide, 24.09" Deep, 24.98" Tall
  • 300 lb Ship Weight
