Chiller, Air Cooled, Hydra NQ Series, 25 Ton, 230/60/3
Item #
175419
$50,795.00
/ EACH

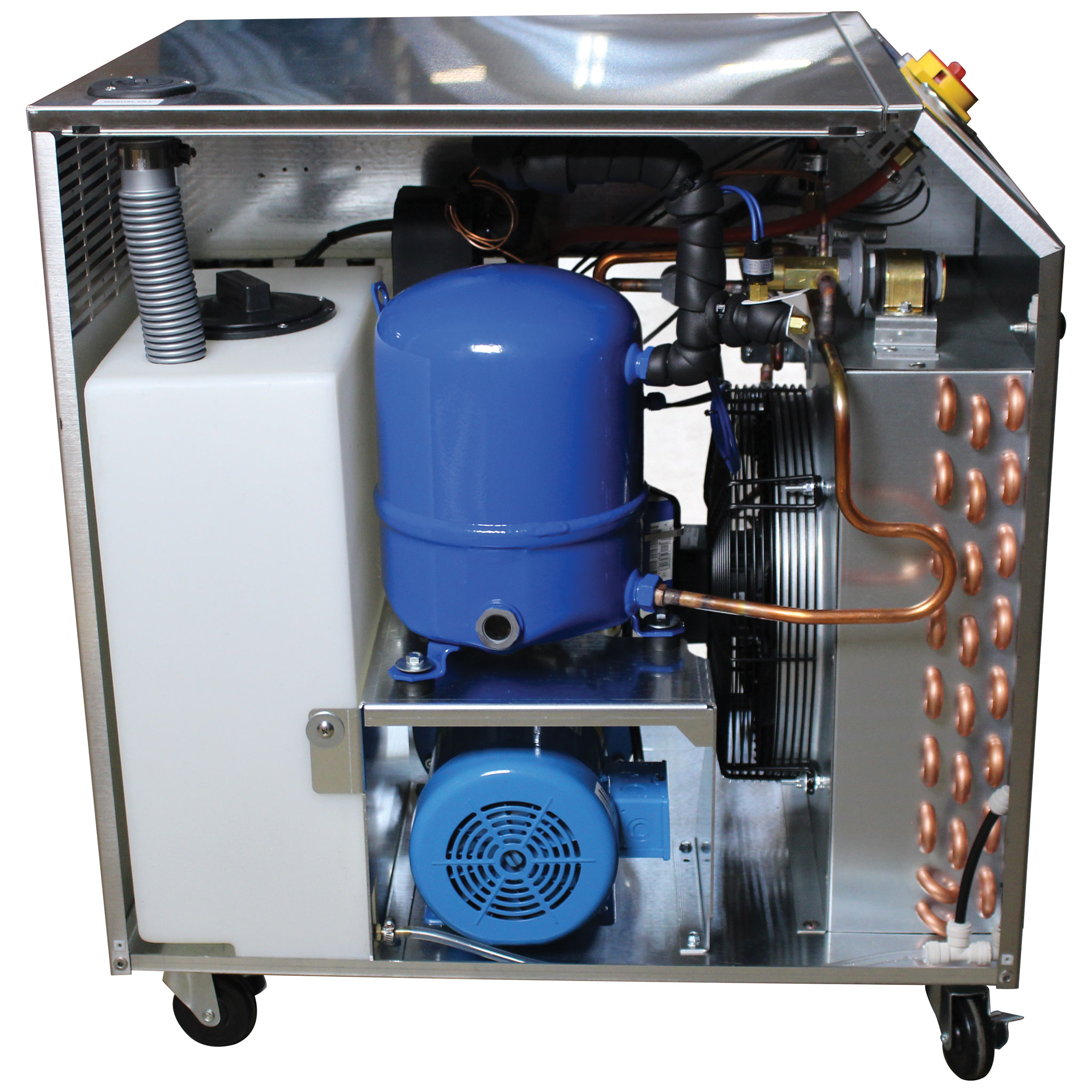

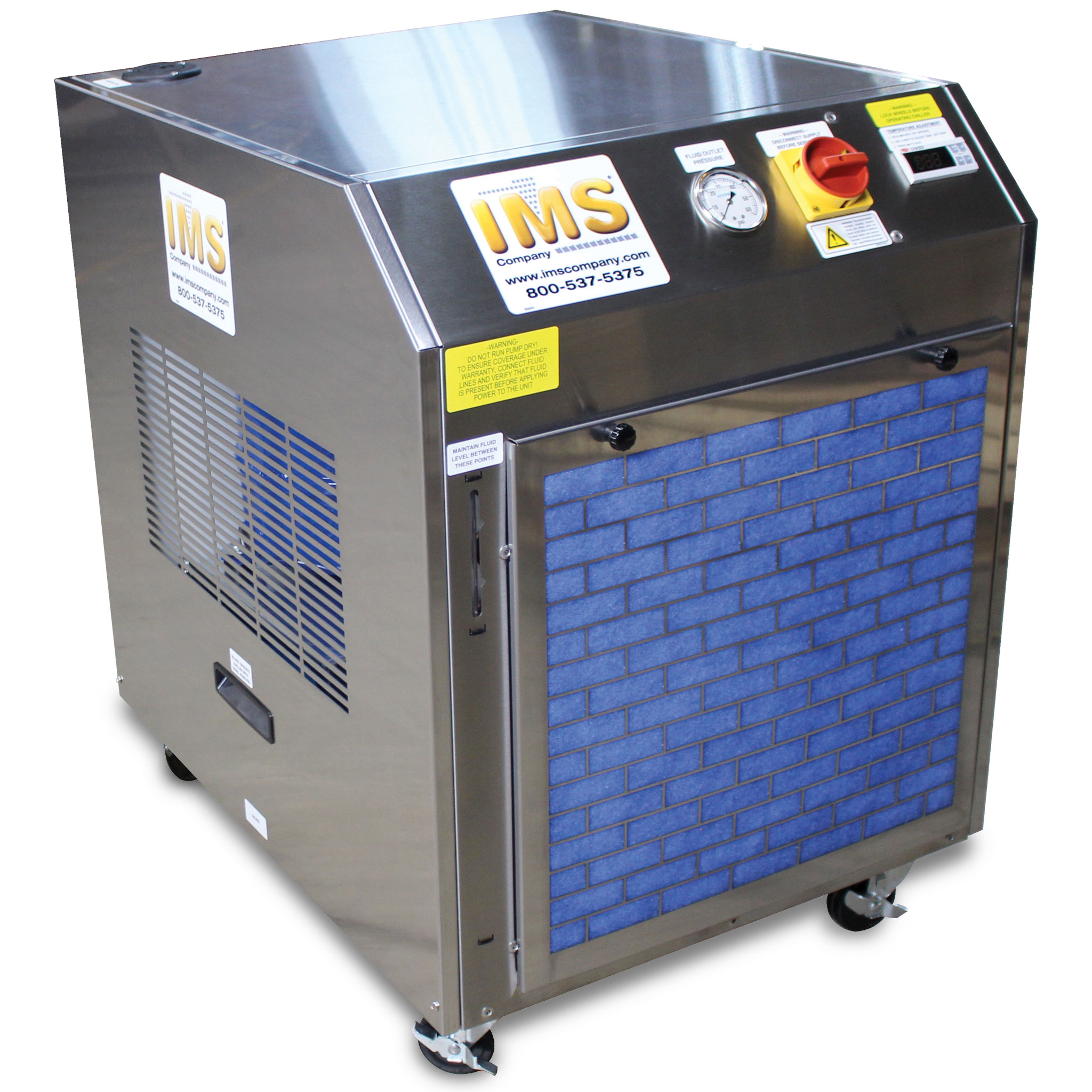

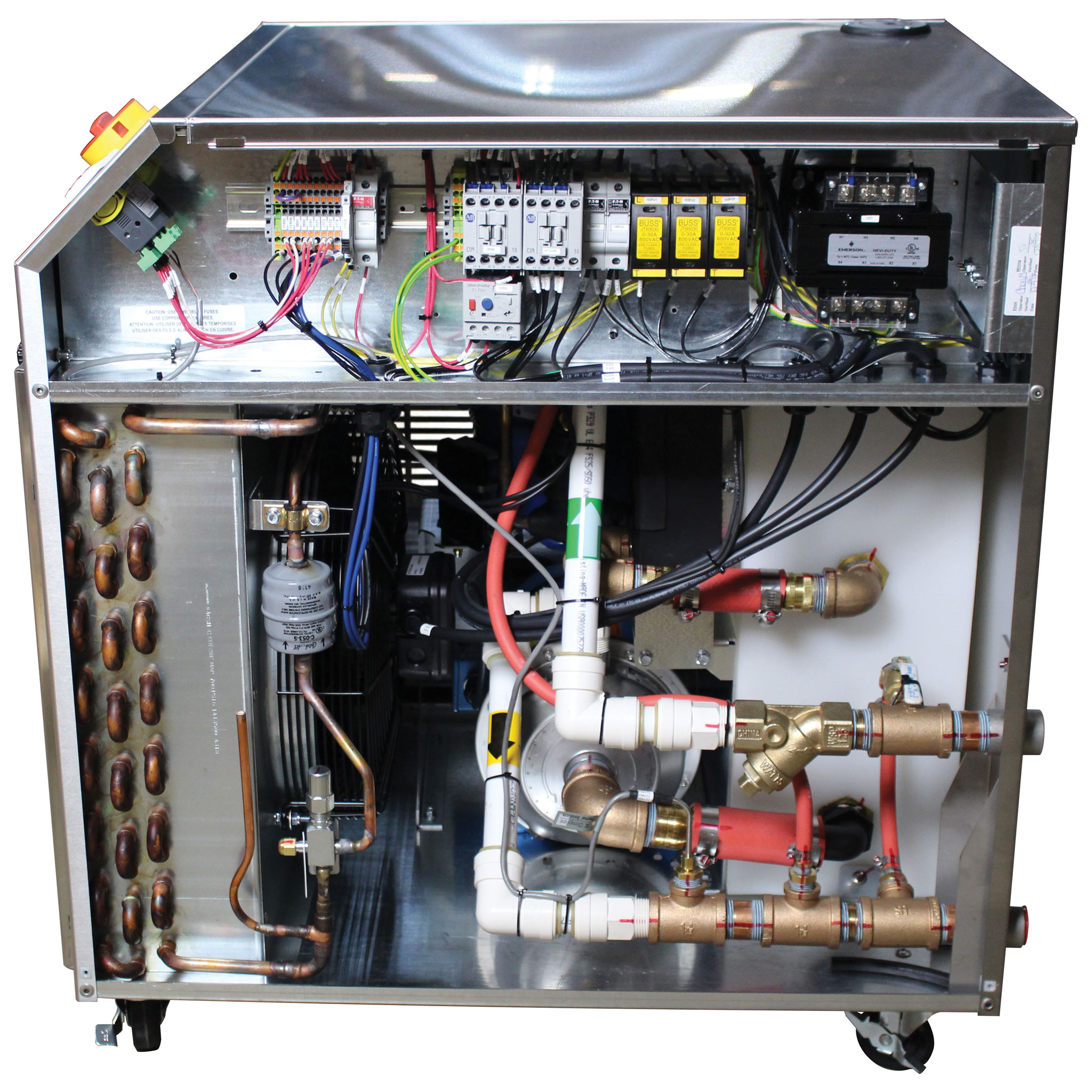

Chiller, J Series, 12000 Btu/hr, 230/60/3 Volt, Includes Auto Water Fill, Complete with Casters.
Item #
176062
Item is not returnable
$11,072.00
/ EACH
Chiller, J Series, 12000 Btu/hr, Air Cooled, 65°F Water at 95°F Ambient, 230/60/3 Volt, Includes Auto Water Fill, Complete with Casters.
- Pump hp: 1/2
- Full Load Amps (FLA): 12
- Tank Size: 10 Gallon
- Flow/Pressure: 4 GPM @ 50 psi
- Inlet/Outlet Fluid Connections: 1/2" NPT
- Bypass Type: Pressure Relief Bypass
- Refrigerant: R513A
- Cabinet Size: 25.125" W x 31.125" D x 33.375" H
- Weight (uncrated): 450 lb
- Weight (crated): 530 lb
- Cooling Capacity (Tons per hour): 1
- Cooling Capacity (BTUs per hour): 12000
- Voltage: 230/60/3
- Pump hp: 0.5
- Flow Rate (GPM at PSI): 4 @ 50
- Inlet / Outlet Size: 1/2"
- Brand: 10
Item Documents
- Item Catalog Page 757
-
-
Chiller, Air Cooled, Hydra EQ Series, 2 Ton, 460/60/3
Item # 149621$10,660.00 / EACH -
Chiller, Air Cooled, Hydra NQ Series, 20 Ton, 230/60/3
Item # 175417$35,690.00 / EACH -
Chiller, Air Cooled, Hydra NQ Series, 8 Ton, 230/60/3
Item # 175409$19,925.00 / EACH -
Chiller, Air Cooled, Hydra NQ Series, 8 Ton, 460/60/3
Item # 175410$19,925.00 / EACH -
Chiller, Air Cooled, Hydra NQ Series, 4 Ton, 230/60/3
Item # 175405$15,820.00 / EACH -
Chiller, Air Cooled, Hydra NQ Series, 10 Ton, 460/60/3
Item # 175412$22,540.00 / EACH -
Chiller, Air Cooled, Hydra NQ Series, 10 Ton 230/60/3
Item # 175411$22,540.00 / EACH -
Chiller, Air Cooled, Hydra NQ Series, 5 Ton, 460/60/3
Item # 175408$17,895.00 / EACH -
Chiller, Air Cooled, Hydra NQ Series, 30 Ton, 230/60/3
Item # 175421$53,525.00 / EACH -
Chiller, Air Cooled, Hydra EQ Series, 3 Ton, 230/60/3
Item # 149622$12,275.00 / EACH -
Chiller, J Series, 18000 Btu/hr 460/60/3 Volt, Includes Auto Water Fill, Complete with Casters.
Item # 176066$11,582.00 / EACH
