$20.50
/ EACH
Eyebolt, 2,860 kg (6,306 lb.) Capacity, Metric, Shouldered, Forged Steel, M20x2.5 Thread Size
Item #
106720
Item is returnable
$27.40
/ EACH

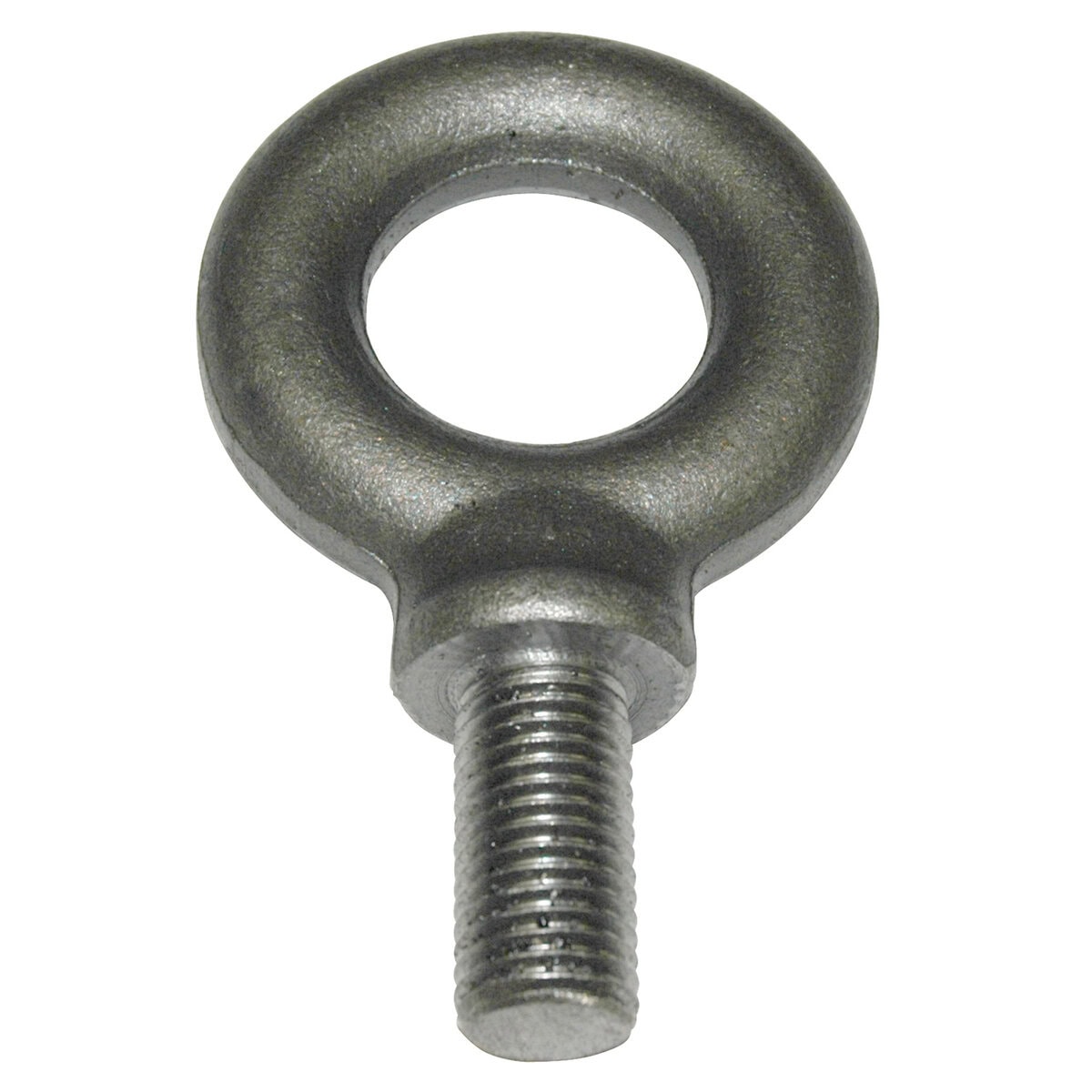

Eyebolt, 2,860 kg (6,306 lb.) Capacity, Metric, Shouldered, Forged Steel, M20x2.5 Thread Size.
- 40 mm (1.632") Shank Length
- 41 mm (1.614") Eye Inside Diameter
- 81.0 mm (3.188") Eye OD
- 52.5 mm (2.07") Center of Eye to Shoulder
- C1030 Steel, Heat Treat – Quench and Draw
- 65,000 psi Min. Tensile Strength
- 30,000 psi Yield
- Load Capacity: 2,860 kg
- Thread Type: Metric
- Style: Shouldered
- Thread Size: M20 x 2.5
Item Documents
- Item Catalog Page 27
-
-
$9.60 / EACH -
Eyebolt, 15,000 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 1-1/4″-7 Thread Size
Item # 107961$37.40 / EACH -
$5.30 / EACH -
Eyebolt, 2,140 kg (4,718 lb.) Capacity, Metric, Shouldered, Forged Steel, M18x2.5 Thread Size
Item # 106723$19.00 / EACH -
Eyebolt, 12,000 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 1-1/8″-7 Thread Size
Item # 101421$28.30 / EACH -
Eyebolt, 6,400 kg (14,080 lb.) Capacity, Metric, Shouldered, Forged Steel, M30x3.5 Thread Size
Item # 108500$63.30 / EACH -
Eyebolt, 5,000 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 3/4″-10 Thread Size
Item # 101419$12.00 / EACH -
$75.00 / EACH -
Eyebolt, 1,030 kg (2,270 lb.) Capacity, Metric, Shouldered, Forged Steel, M12x1.75 Thread Size
Item # 107520$11.40 / EACH -
Eyebolt, 1,600 kg (3,527 lb.) Capacity, Metric, Shouldered, Forged Steel, M16x2.0 Thread Size
Item # 106724$17.20 / EACH -
$123.50 / EACH
