$123.50
/ EACH

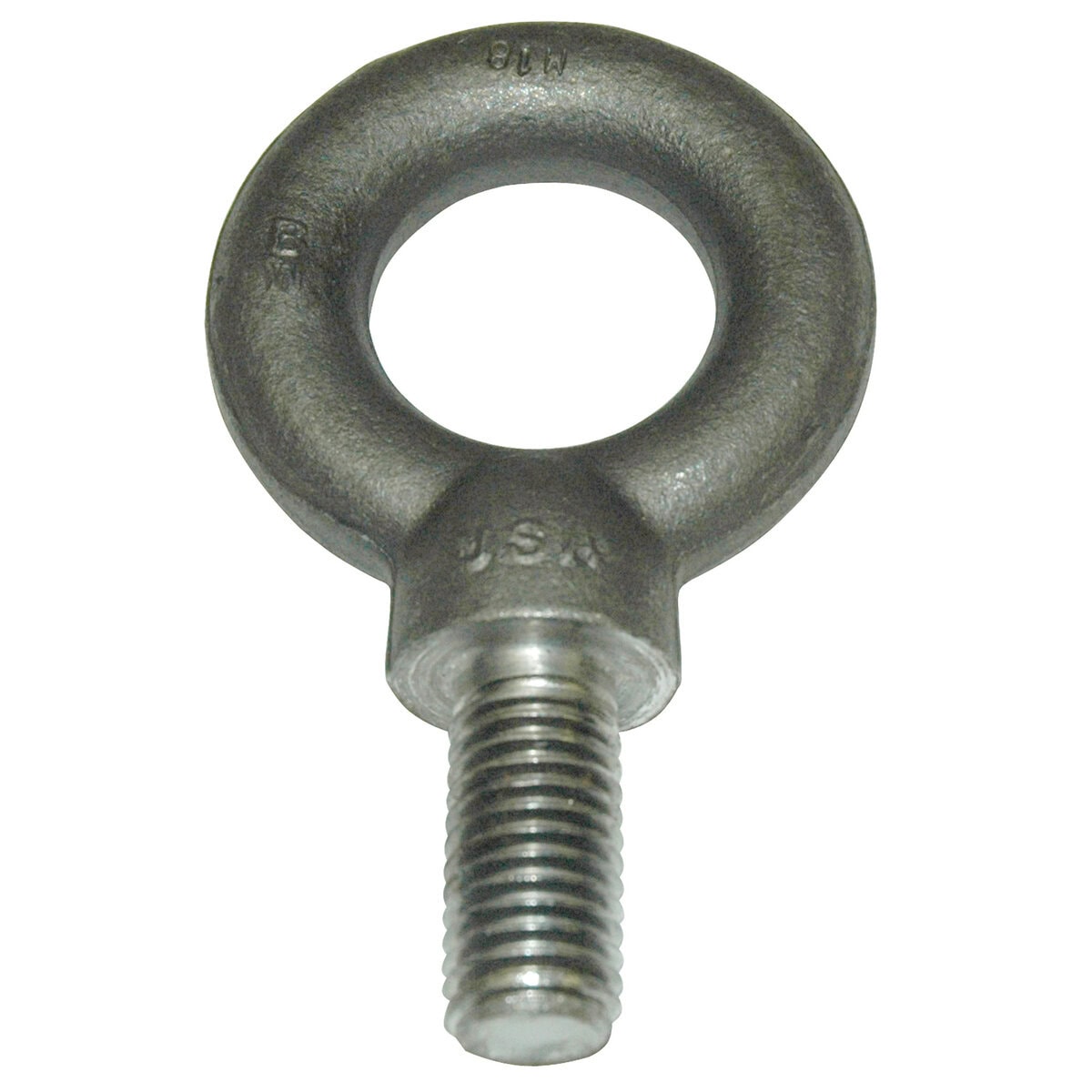

Eyebolt, 2,140 kg (4,718 lb.) Capacity, Metric, Shouldered, Forged Steel, M18x2.5 Thread Size
Item #
106723
Item is returnable
$19.00
/ EACH
Eyebolt, 2,140 kg (4,718 lb.) Capacity, Metric, Shouldered, Forged Steel, M18x2.5 Thread Size.
- 36 mm (1.469") Shank Length
- 38 mm (1.496") Eye Inside Diameter
- 71.5 mm (2.814") Eye OD
- 44.7 mm (1.76") Center of Eye to Shoulder
- C1030 Steel, Heat Treat – Quench and Draw
- 65,000 psi Min. Tensile Strength
- 30,000 psi Yield
- Load Capacity: 2,140 kg
- Thread Type: Metric
- Style: Shouldered
- Thread Size: M18 x 2.5
Item Documents
- Item Catalog Page 27
-
-
Eyebolt, 21,000 lb. Capacity, Standard, Shouldered, Forged Steel, 1-1/2″-6 Thread Size
Item # 138829$62.70 / EACH -
$9.60 / EACH -
$193.80 / EACH -
Eyebolt, 12,000 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 1-1/8″-7 Thread Size
Item # 101421$28.30 / EACH -
$11.50 / EACH -
$75.00 / EACH -
Eyebolt, 1,300 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 3/8″-16 Thread Size
Item # 101417$5.00 / EACH -
$28.40 / EACH -
Eyebolt, 1,030 kg (2,270 lb.) Capacity, Metric, Shouldered, Forged Steel, M12x1.75 Thread Size
Item # 107520$11.40 / EACH -
Eyebolt, 28,000 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 1-3/4″-5 Thread Size
Item # 142211$138.70 / EACH -
Eyebolt, 5,000 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 3/4″-10 Thread Size
Item # 101419$12.00 / EACH
