$193.80
/ EACH
Eyebolt, 500 kg (1,102 lb.) Capacity, Metric, Shouldered, Forged Steel, M8x1.25Thread Size
Item #
107516
Item is returnable
$10.20
/ EACH

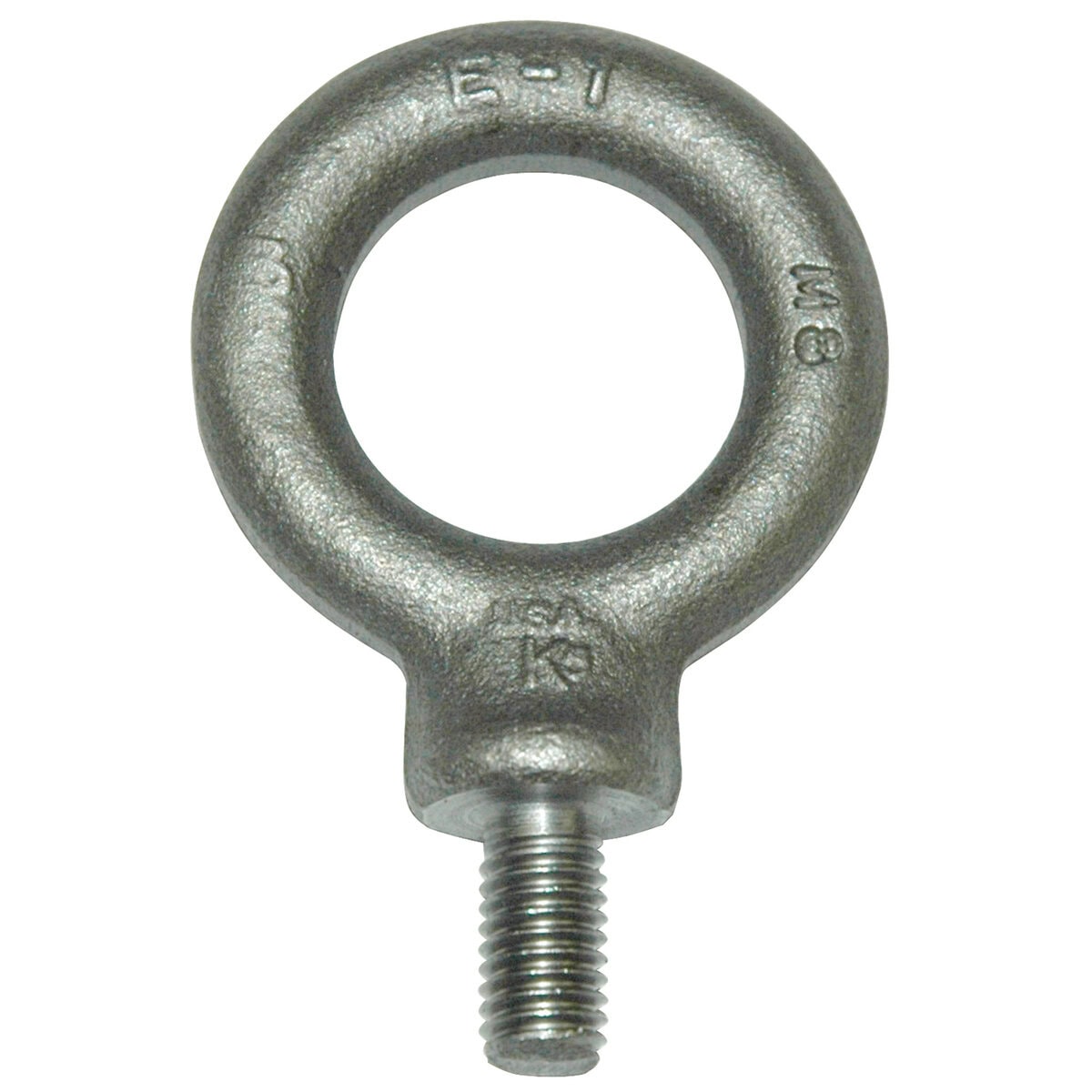

Eyebolt, 500 kg (1,102 lb.) Capacity, Metric, Shouldered, Forged Steel, M8x1.25Thread Size.
- 16 mm (0.63") Shank Length
- 25 mm (0.984") Eye Inside Diameter
- 43.0 mm (1.693") Eye OD
- 27.8 mm (1.094") Center of Eye to Shoulder
- C1030 Steel, Heat Treat – Quench and Draw
- 65,000 psi Min. Tensile Strength
- 30,000 psi Yield
- Load Capacity: 500 kg
- Thread Type: Metric
- Style: Shouldered
- Thread Size: M8 x 1.25
Item Documents
- Item Catalog Page 27
-
-
Eyebolt, 12,000 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 1-1/8″-7 Thread Size
Item # 101421$28.30 / EACH -
Eyebolt, 21,000 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 1-1/2″-6 Thread Size
Item # 142210$100.00 / EACH -
$20.50 / EACH -
Eyebolt, 3,850 kg (8,489 lb.) Capacity, Metric, Shouldered, Forged Steel, M24x3.0 Thread Size
Item # 106718$35.80 / EACH -
Eyebolt, 2,400 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 1/2″-13 Thread Size
Item # 101423$6.10 / EACH -
$123.50 / EACH -
$6.10 / EACH -
Eyebolt, 5,000 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 3/4″-10 Thread Size
Item # 101419$12.00 / EACH -
Eyebolt, 1,600 kg (3,527 lb.) Capacity, Metric, Shouldered, Forged Steel, M16x2.0 Thread Size
Item # 106724$17.20 / EACH -
$28.40 / EACH -
Eyebolt, 740 kg (1,631 lb.) Capacity, Metric, Shouldered, Forged Steel, M10x1.5 Thread Size
Item # 107521$11.20 / EACH
