Hoist Ring Replacement Bolt/Screw Kit for IMS Hoist Ring #115956. Bolt/Screw Size M30x3.5
Item #
122916
$41.60
/ EACH

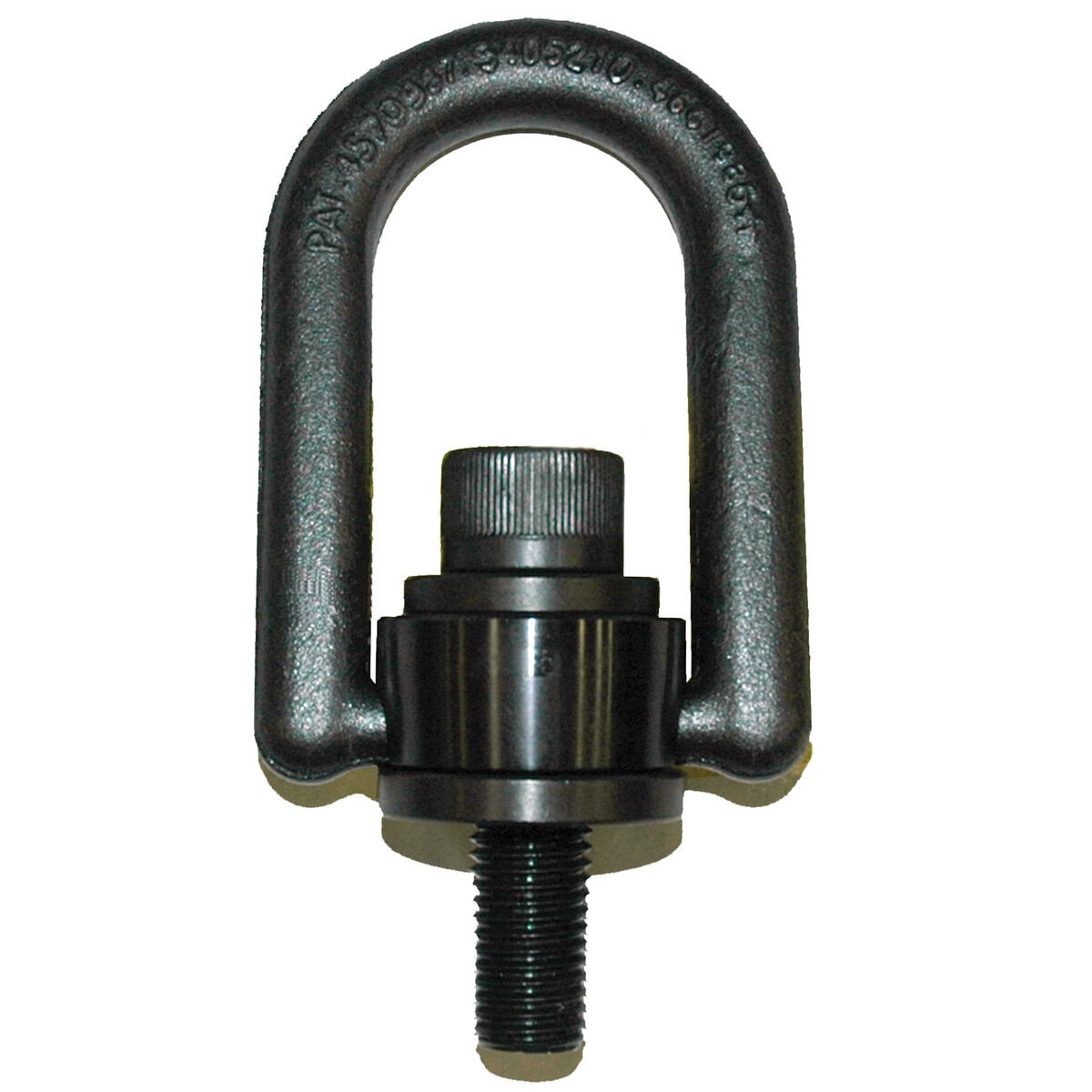

Hoist Ring, Metric Size, Rated Load: 2200 kg. M20x2.5 Thread Size, 38mm Thread Length
Item #
115957
Item is returnable
$86.00
/ EACH
Hoist Ring, Metric Size, Rated Load: 2200 kg. M20x2.5 Thread Size, 38mm Thread Length. ADB # 34716
- Made in the USA
- 180 Pivot and 360 Degree Swivel
- Retains Full Load Capacity at Any Angle
- Minimum Safety Factor 5: 1
- Meets OSHA Standards
- Meets MIL-STD1365 (11) or MIL-STD209C
- Used in Nuclear Energy Equipment
- Independent Destructive Testing
- 4140 High Strength Alloy Steel
- Minimum Tensile Strength of 180,000 psi
- Certified Heat Treatment
- 100% Magnetic Particle Inspected
- Black Oxide Finish
- Thread Type: Metric
- Rated Load: 2,200 kg
- Thread Size: M20 x 2-1/2
- Thread Length: 38mm
- Safety Engineered: No
Item Documents
- Item Catalog Page 23
-
-
$194.30 / EACH -
$68.00 / EACH -
Hoist Ring, Standard Size, Rated Load: 8000 lb. 7/8″-9 Thread Size, 1.20″ Thread Length
Item # 115946$187.20 / EACH -
Hoist Ring, Standard Size, Rated Load: 5000 lb. 3/4″-10 Thread Size, 1.5″ Thread Length
Item # 115943$86.00 / EACH -
Hoist Ring, Standard Size, Rated Load: 10000 lb. 1″-8 Thread Size, 1.45″ Thread Length
Item # 115935$194.30 / EACH -
Hoist Ring, Metric Size, Rated Load: 1050 kg. M12x1.75 Thread Size, 25mm Thread Length.
Item # 115955$82.80 / EACH -
$86.00 / EACH -
Hoist Ring, Metric Size, Rated Load: 1050 kg. M12x1.75 Thread Size, 32mm Thread Length
Item # 115950$82.80 / EACH -
Hoist Ring, Standard Size, Rated Load: 30000 lb. 2″-4-1/2 Thd Size, 2.96″ Thd Length, 2″ Shank Dia
Item # 115958$655.70 / EACH -
Hoist Ring, Standard Size, Rated Load: 2500 lb. 1/2″-13 Thread Size, 1.25″ Thread Length
Item # 115931$82.80 / EACH -
$86.00 / EACH
