$86.00
/ EACH

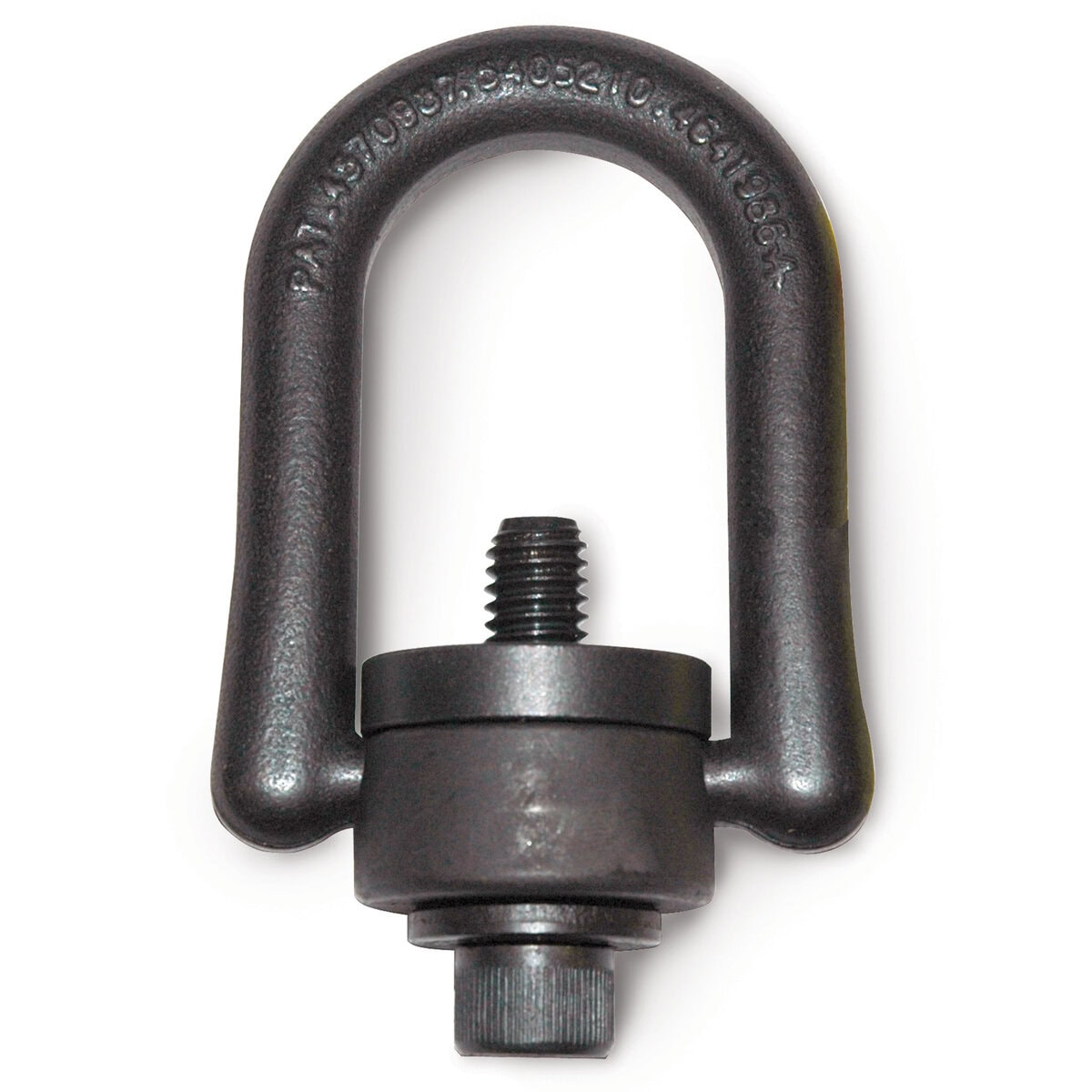

Hoist Ring, Standard Size, Rated Load: 1000 lb. 3/8″-16 Thread Size, .56″ Thread Length
Item #
115924
Item is returnable
$68.30
/ EACH
Hoist Ring, Standard Size, Rated Load: 1000 lb. 3/8″-16 Thread Size, .56″ Thread Length. ADB # 33312
- Made in the USA
- 180 Pivot and 360 Degree Swivel
- Retains Full Load Capacity at Any Angle
- Minimum Safety Factor 5: 1
- Meets OSHA Standards
- Meets MIL-STD1365 (11) or MIL-STD209C
- Used in Nuclear Energy Equipment
- Independent Destructive Testing
- 4140 High Strength Alloy Steel
- Minimum Tensile Strength of 180,000 psi
- Certified Heat Treatment
- 100% Magnetic Particle Inspected
- Black Oxide Finish
- Thread Type: Standard
- Rated Load: 1,000 lb
- Thread Size: 3/8"-16
- Thread Length: 0.56"
- Safety Engineered: No
Item Documents
- Item Catalog Page 23
-
-
$187.20 / EACH -
Hoist Ring Replacement Bolt/Screw Kit for IMS Hoist Ring #115950. Bolt/Screw Size M12x1.75
Item # 122861$18.90 / EACH -
Hoist Ring, Metric Size, Rated Load: 400 kg. M8x1.25 Thread Size, 21mm Thread Length. ADB # 34214
Item # 115948$68.30 / EACH -
Hoist Ring, Metric Size, Rated Load: 1050 kg. M12x1.75 Thread Size, 32mm Thread Length
Item # 115950$82.80 / EACH -
$82.80 / EACH -
Hoist Ring, Standard Size, Rated Load: 30000 lb. 2″-4-1/2 Thd Size, 2.96″ Thd Length, 2″ Shank Dia
Item # 115958$655.70 / EACH -
$86.00 / EACH -
Hoist Ring, Standard Size, Rated Load: 2500 lb. 1/2″-13 Thread Size, 1.25″ Thread Length
Item # 115931$82.80 / EACH -
$333.10 / EACH -
$194.30 / EACH -
Hoist Ring Replacement Bolt/Screw Kit for IMS Hoist Ring #115953. Bolt/Screw Size 5/8″-11
Item # 122841$18.10 / EACH
