Hoist Ring Replacement Bolt/Screw Kit for IMS Hoist Ring #115956. Bolt/Screw Size M30x3.5
Item #
122916
$41.60
/ EACH

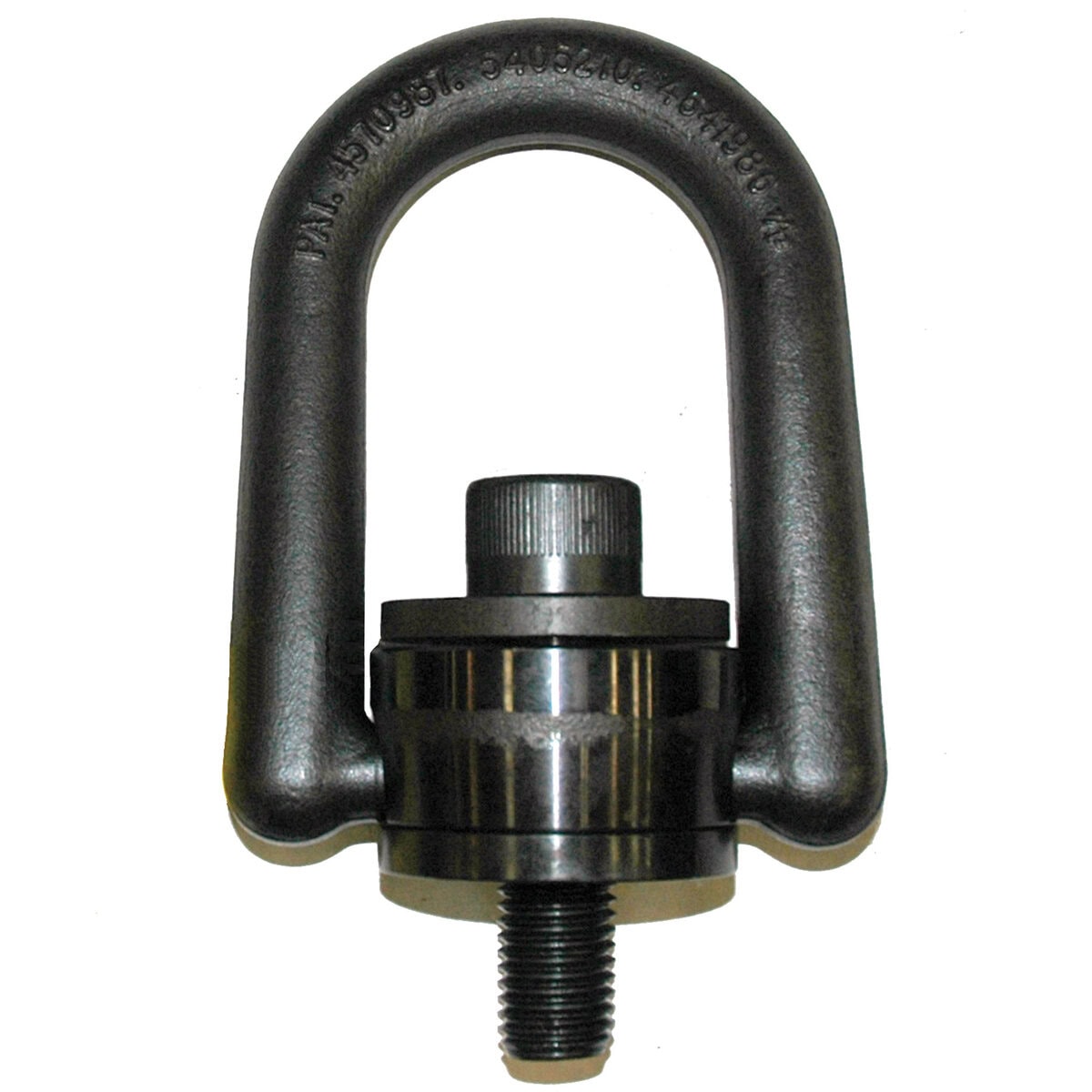

Hoist Ring, Metric Size, Rated Load: 4200 kg. M24x3.0 Thread Size, 38mm Thread Length
Item #
115966
Item is returnable
$187.20
/ EACH
Hoist Ring, Metric Size, Rated Load: 4200 kg. M24x3.0 Thread Size, 38mm Thread Length. ADB # 34103
- Made in the USA
- 180 Pivot and 360 Degree Swivel
- Retains Full Load Capacity at Any Angle
- Minimum Safety Factor 5: 1
- Meets OSHA Standards
- Meets MIL-STD1365 (11) or MIL-STD209C
- Used in Nuclear Energy Equipment
- Independent Destructive Testing
- 4140 High Strength Alloy Steel
- Minimum Tensile Strength of 180,000 psi
- Certified Heat Treatment
- 100% Magnetic Particle Inspected
- Black Oxide Finish
- Thread Type: Metric
- Rated Load: 4,200 kg
- Thread Size: M24 x 3.0
- Thread Length: 38mm
- Safety Engineered: No
Item Documents
- Item Catalog Page 23
-
-
Hoist Ring, Standard Size, Rated Load: 7000 lb. 3/4″-10 Thread Size, 1.20″ Thread Length
Item # 115941$187.20 / EACH -
$86.00 / EACH -
Hoist Ring Replacement Bolt/Screw Kit for IMS Hoist Ring #115935. Bolt/Screw Size 1″-8
Item # 122761$41.10 / EACH -
Hoist Ring, Standard Size, Rated Load: 5000 lb. 3/4″-10 Thread Size, 1.5″ Thread Length
Item # 115943$86.00 / EACH -
Hoist Ring, Standard Size, Rated Load: 2500 lb. 1/2″-13 Thread Size, 1.25″ Thread Length
Item # 115931$82.80 / EACH -
$86.00 / EACH -
Hoist Ring, Standard Size, Rated Load: 30000 lb. 2″-4-1/2 Thd Size, 2.96″ Thd Length, 2″ Shank Dia
Item # 115958$655.70 / EACH -
Hoist Ring, Standard Size, Rated Load: 4000 lb. 5/8″-11 Thread Size, 1.25″ Thread Length
Item # 115953$82.80 / EACH -
Hoist Ring, Standard Size, Rated Load: 800 lb. 5/16″-18 Thread Size, .56″ Thread Length
Item # 115925$68.30 / EACH -
$194.30 / EACH -
Hoist Ring, Standard Size, Rated Load: 10000 lb. 1″-8 Thread Size, 1.45″ Thread Length
Item # 115935$194.30 / EACH
