Hoist Ring Replacement Bolt/Screw Kit for IMS Hoist Ring #115957. Bolt/Screw Size M20x2.5
Item #
122810
$35.20
/ EACH

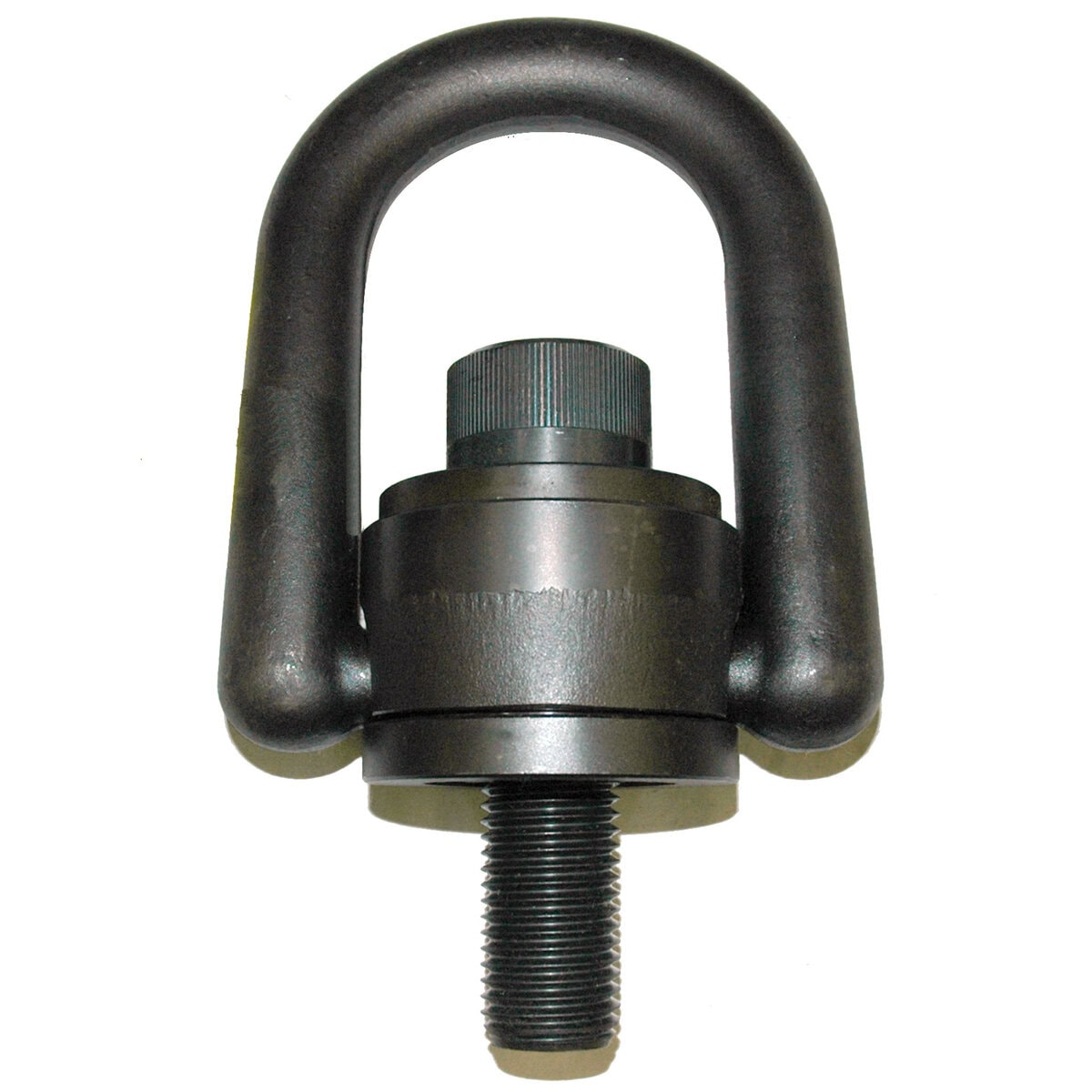

Hoist Ring, Metric Size, Rated Load: 11000 kg. M36x4.0 Thread Size, 67mm Thread Length
Item #
115959
Item is returnable
$333.10
/ EACH
Hoist Ring, Metric Size, Rated Load: 11000 kg. M36x4.0 Thread Size, 67mm Thread Length. ADB # 34402
- Made in the USA
- 180 Pivot and 360 Degree Swivel
- Retains Full Load Capacity at Any Angle
- Minimum Safety Factor 5: 1
- Meets OSHA Standards
- Meets MIL-STD1365 (11) or MIL-STD209C
- Used in Nuclear Energy Equipment
- Independent Destructive Testing
- 4140 High Strength Alloy Steel
- Minimum Tensile Strength of 180,000 psi
- Certified Heat Treatment
- 100% Magnetic Particle Inspected
- Black Oxide Finish
- Thread Type: Metric
- Rated Load: 11,000 kg
- Thread Size: M36 x 4.0
- Thread Length: 67mm
- Safety Engineered: No
Item Documents
- Item Catalog Page 23
-
-
$82.80 / EACH -
$68.00 / EACH -
Hoist Ring, Standard Size, Rated Load: 15000 lb. 1-1/4″-7 Thread Size, 2.63″ Thread Length
Item # 115944$289.10 / EACH -
Hoist Ring, Standard Size, Rated Load: 2500 lb. 1/2″-13 Thread Size, 1.25″ Thread Length
Item # 115931$82.80 / EACH -
$86.00 / EACH -
$333.10 / EACH -
Hoist Ring Replacement Bolt/Screw Kit for IMS Hoist Ring #115950. Bolt/Screw Size M12x1.75
Item # 122861$18.90 / EACH -
Hoist Ring Replacement Bolt/Screw Kit for IMS Hoist Ring #115956. Bolt/Screw Size M30x3.5
Item # 122916$41.60 / EACH -
Hoist Ring Replacement Bolt/Screw Kit for IMS Hoist Ring #115935. Bolt/Screw Size 1″-8
Item # 122761$41.10 / EACH -
$194.30 / EACH -
Hoist Ring, Standard Size, Rated Load: 10000 lb. 1″-8 Thread Size, 1.45″ Thread Length
Item # 115935$194.30 / EACH
