  • IMS Series Material Loader, Model 400, Electric 1.4 hp Motor, Hopper Mount Style, 650 lb/hr

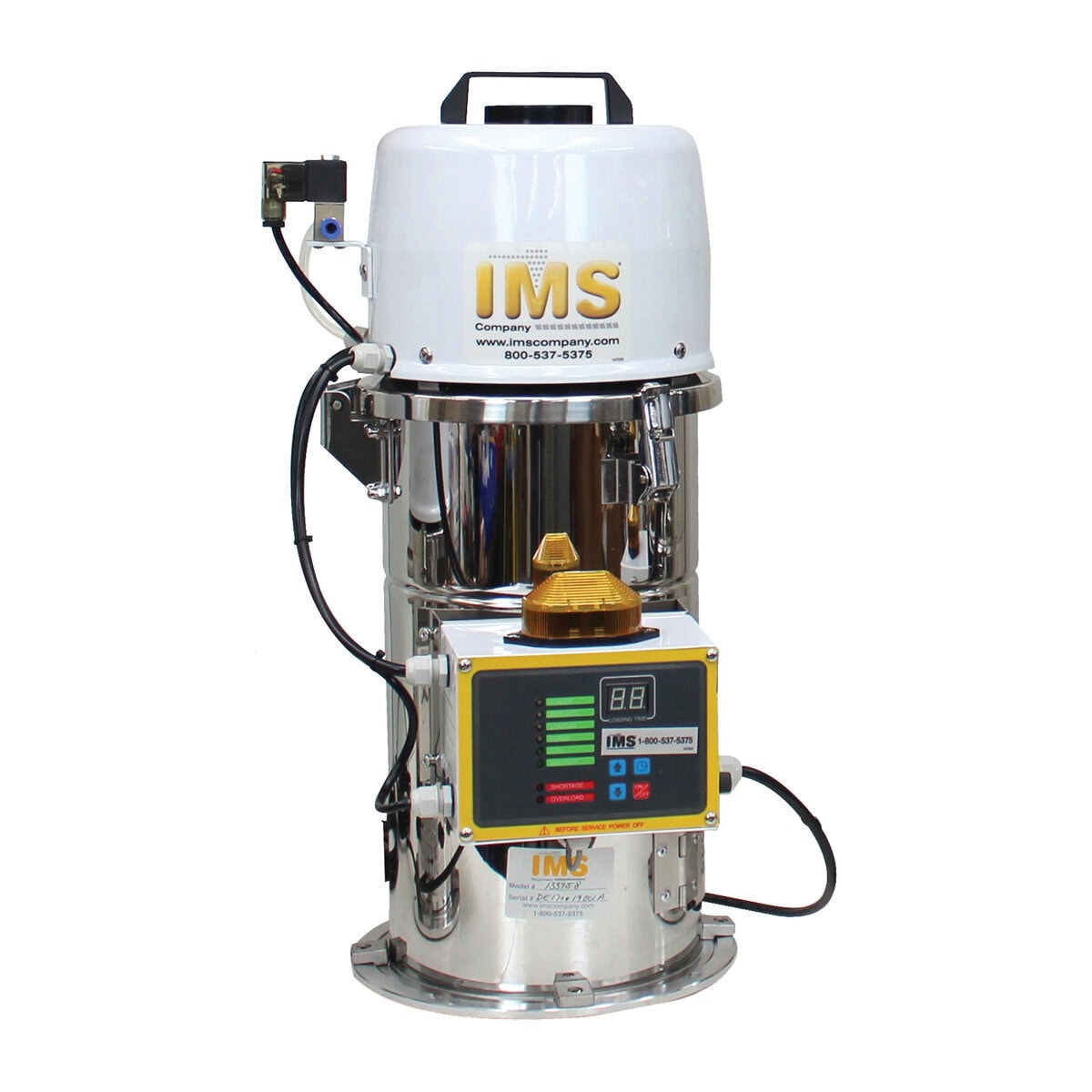

IMS Series Material Loader, Model 400, Electric 1.4 hp Motor, Hopper Mount Style, 650 lb/hr - Image 1

IMS Series Material Loader, Model 400, Electric 1.4 hp Motor, Hopper Mount Style, 650 lb/hr

Item # 133758
Item is returnable
$1,225.00 / EACH

IMS Series Material Loader, Model 400, Electric 1.4 hp Motor, Hopper Mount Style, 650 lb/hr Conveying Capacity (Material Dependent), Built in Automatic Self-Cleaning Filter with Attached Control Panel.

Item Features

  • Power: 115/60/1 Cord Length: 15ft
  • Body/Wand Construction: Stainless Steel
  • Hopper Capacity: 13.2 lb (6 Liters)
  • Includes: 10' of 1-1/2" Inside Diameter Grounded Hose, Vacuum Wand, and (2) Hose Clamps
  • Warranty: 2 Years
  • Motor hp: 1.4
  • Throughput Maximum: 650 lb/hr – 294 kg/hr
  • Inlet Diameter: 1.5"
  • Bolt Hole Pattern (8 Holes): 10.43" Diameter
  • Inner Mounting Diameter: 9.19" – 233mm
  • Outer Mounting Diameter: 11.22" – 285mm
  • Depth: 13.6" – 347mm
  • Overall Height: 24.4" – 620mm
  • Weight: 28.6 lb. – 13kg
  • Works with Proportioning Valve # 142842
