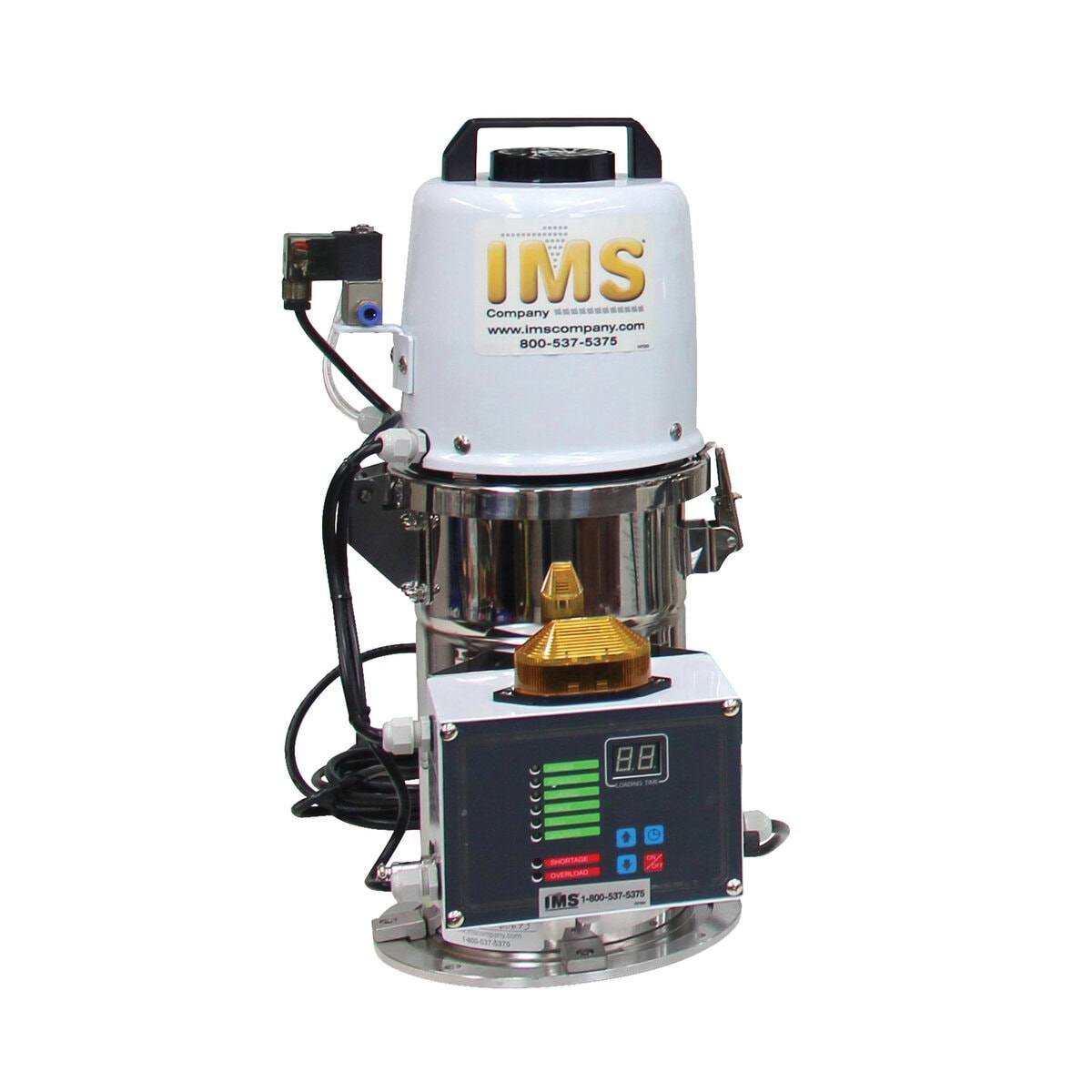

IMS Series Material Loader, Model 200, Electric 1.4 hp Motor, Hopper Mount Style, 450 lb/hr

Item # 137121

Item is returnable

$1,080.00 / EACH

IMS Series Material Loader, Model 200, Electric 1.4 hp Motor, Hopper Mount Style, 450 lb/hr Conveying Capacity (Material Dependent), Built in Automatic Self-Cleaning Filter with Attached Control Panel.

Item Features

Power: 115/60/1 Cord Length: 15ft
Body/Wand Construction: Stainless Steel
Hopper Capacity: 6.6 lb (3 Liters)
Includes: 10' of 1-1/2" Inside Diameter Grounded Hose, Vacuum Wand, and (2) Hose Clamps
Warranty: 2 Years
Motor hp: 1.4
Throughput Maximum: 450 lb/hr – 204 kg/hr
Inlet Diameter: 1.5"
Bolt Hole Pattern (8 Holes): 8.42" Diameter
Inner Mounting Diameter: 6.83" – 174mm
Outer Mounting Diameter: 9.25" – 235mm
Depth: 13.5" – 334mm
Overall Height: 19.6" – 500mm
Weight: 26.45 lb. – 12 kg
Works with Proportioning Valve # 142842

Item Documents

Item Catalog Page 652
Item Manual
