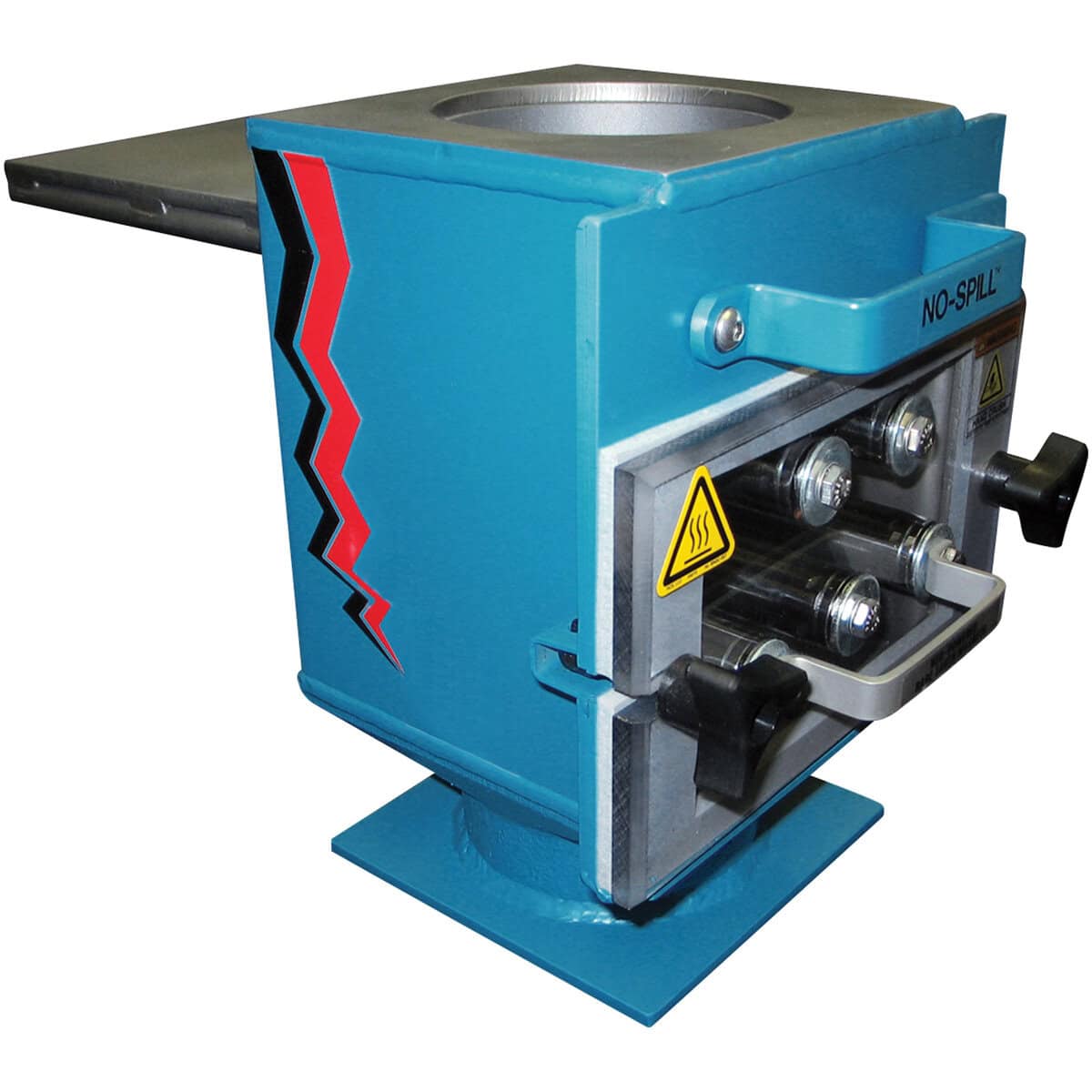

Drawer Magnet 6″ x 6″ With Made to Order Flanges

Name: Drawer Magnet 6" x 6" With Made to Order Flanges
SKU: 133918

Item # 133918

Item is not returnable

$974.00 / EACH

Customized Magnet Housing and Rare Earth Drawer Magnet, 6″ x 6″ Stainless Steel Square Housing with Customer Specified Mild Steel Top and Bottom Mounting Flanges. Includes “No-Spill”(TM) Slide Gate. for Machines with 2″ to 4” Feed Throat Openings.
** Requires Flange Form & Custom Part Number **
** Item is Made to Your Specifications **

Item Features

Minimize Downtime: the slide gate enables you to stop material flow and clean the magnet without sacrificing productivity
180°F Temperature-compensated Rare Earth Neodymium Magnets Made for Injection Molding Machines
5,000 Gauss Magnetic Strength
Two rows of 25mm (1") tubes optimize the magnetic circuit, ensuring free material flow
6" x 6" Heavy Duty 11 ga. Stainless Steel Housing, can support symmetrical compression loads up to 10,000 lb.
Carbon Steel Flanges – 1/4" thickness
EPDM Drawer Gasket resists heat aging
Clear Polycarbonate Drawer Front allows easy viewing of materials
High-torque Nylon Drawer Knobs
Available Options: Purge Hopper, Rear Dump Tube, Liquid Color Port, 392°F High Temperature Magnets – Inquire
