Item # 175407 in Chillers, Air Cooled

$15,605.00 ea

Description

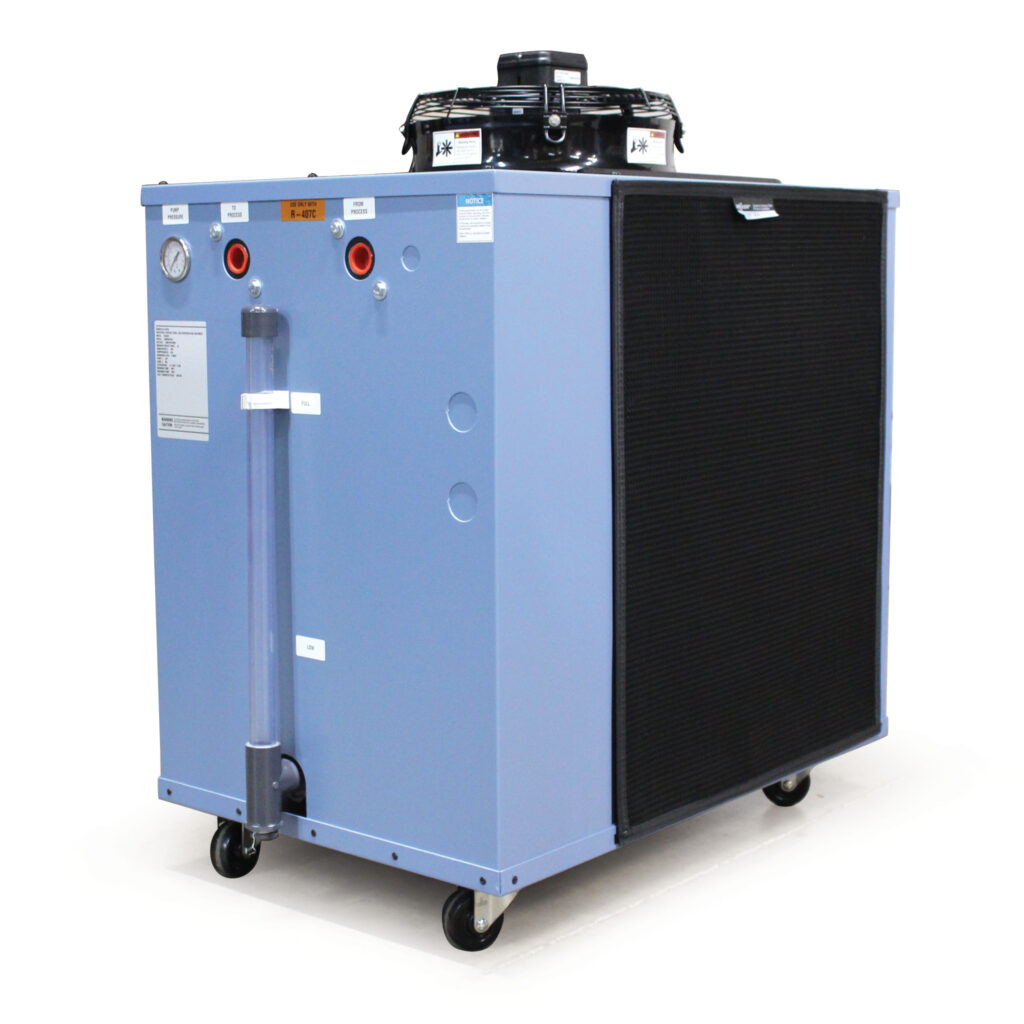

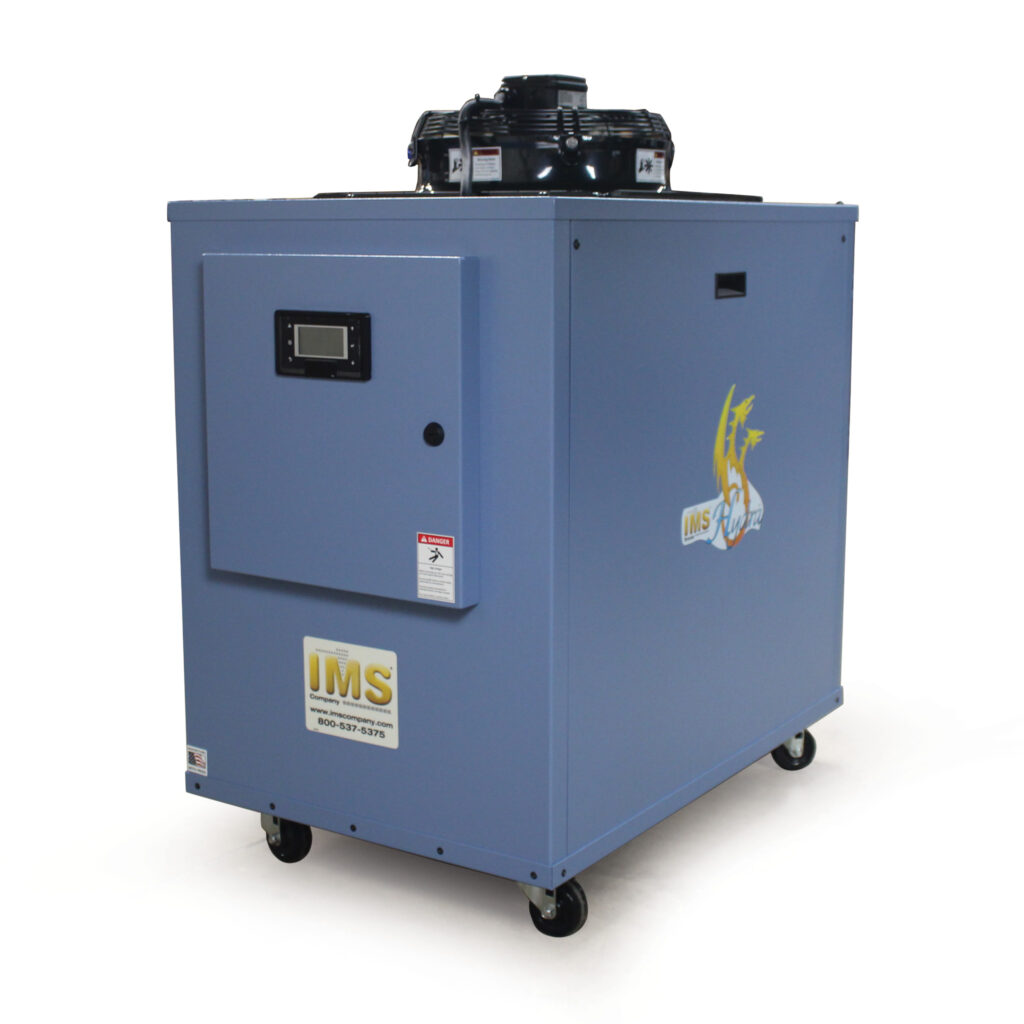

Chiller, 5 Ton, Air Cooled, Hydra NQ Series, 5.1 Tons Actual (61,200 BTU’s) at 50F Leaving Fluid Temperature and 95F Ambient. 230/60/3 Volt. Set Point Range 20F-80F. C-UL508A Controls, 7” Color Touch Screen PLC, Alarm Horn, Electronic Hot Gas Bypass, Stainless Steel Brazed Plate Evaporator, Internal Valved Bypass Line Protects the Pump and Evaporator. Y-Strainer Protects Evaporator from Contamination. Includes Casters.

Specifications
  • Pump: 2 hp, 12 gpm at 41 psi
  • 33 Minimum Circuit Amps at 230/60/3
  • Fluid Connection Size: 1-1/2" Female NPT
  • Refrigerant: R454b, Environmentally Compliant 2024
  • Single Danfoss Scroll Compressor
  • Nonferrous Water Circuit Construction
  • Insulated Polyethylene Reservoir
  • C-UL508A and PLC Controls
  • Control Includes Operation, Monitoring, Diagnostics and Trending Data
  • Single Point Main Power Block
  • Alarm Horn
  • Heavy Gauge Painted Steel Cabinet
  • Dimensions: 61"H, 34"W, 48"L
  • Weight: 720 lb Crated
  • Tested Under "Full Load" Conditions
  • Warranty: 18 Months Parts, 12 Months Labor
