Item # 149539 in Manifolds
$143.00 ea
Description

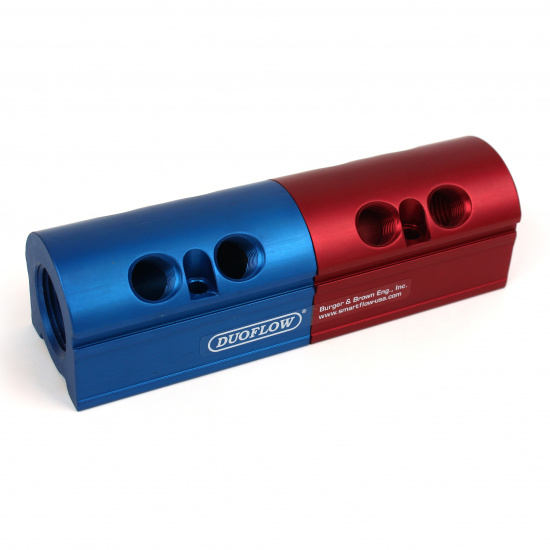

Manifold, Aluminum, Duoflow, (2) 1" Inlets and (8) 3/8" Ports, 4 Ports Blue to Denote Supply End and 4 Ports Red for Return End, Divided Internally, Split Bulkhead Design. SMARTFLOW 8SDA-8-3-13-AYZ
Specifications
- Max Temp: 210 F
- Max Pressure: 150 psi
- Material: Anodized Aluminum
- Overall Length: 7-1/4" (184mm)
- Divider: Stainless Steel
- O-Ring: EPDM
- Mold-Mount to Speed Mold Changes
- Not recommended with ball valves due to narrow port spacing
