Item # 149541 in Manifolds
$208.00 ea
Description

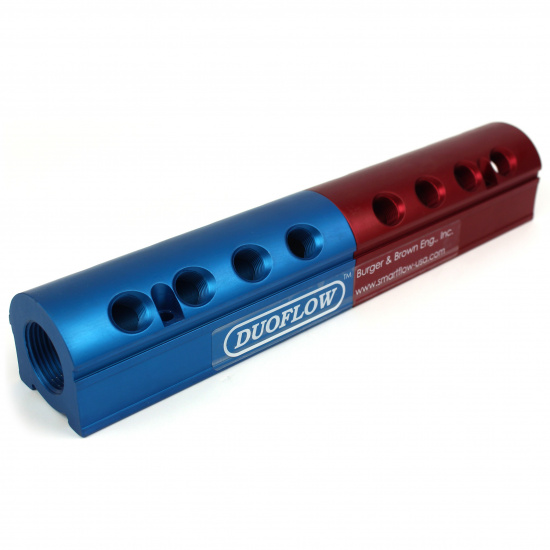

Manifold, Aluminum, Duoflow, (2) 1" Inlets and (16) 3/8" Ports, 8 Ports Blue to Denote Supply End and 8 Ports Red for Return End, Divided Internally, Split Bulkhead Design. SMARTFLOW 8SDA-16-3-13-AYZ
Specifications
- Max Temp: 210 F
- Max Pressure: 150 psi
- Material: Anodized Aluminum
- Overall Length: 12-1/4" (311mm)
- Divider: Stainless Steel
- O-Ring: EPDM
- Mold-Mount to Speed Mold Changes
- Not recommended with ball valves due to narrow port spacing
