Item # 149542 in Manifolds
$204.00 ea
Description

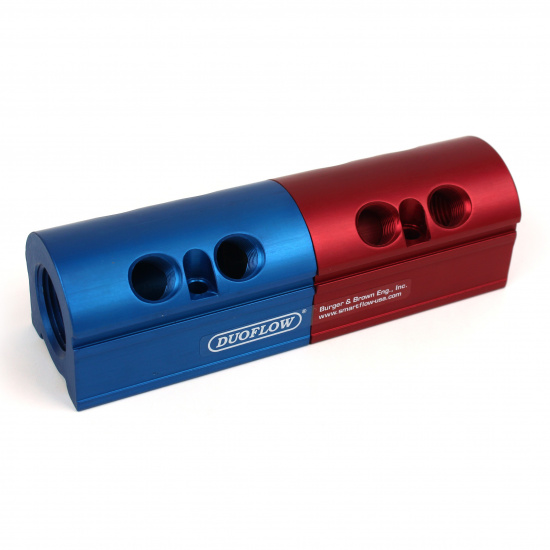

Manifold, Aluminum, Duoflow (2) 1-1/2" Inlets and (8) 1/2" Ports, 4 Ports Blue to Denote Supply End and 4 Ports Red for Return End, Divided Internally, Split Bulkhead Design. SMARTFLOW 12SDA-8-4-13-AYZ
Specifications
- Max Temp: 210 F
- Max Pressure: 150 psi
- Material: Anodized Aluminum
- Overall Length: 9" (229mm)
- Divider: Stainless Steel
- O-Ring: EPDM
- Mold-Mount to Speed Mold Changes
- Not recommended with ball valves due to narrow port spacing
