Item # 158419 in Circulators, Mold Temperature Controllers
$4,495.00 ea
Description

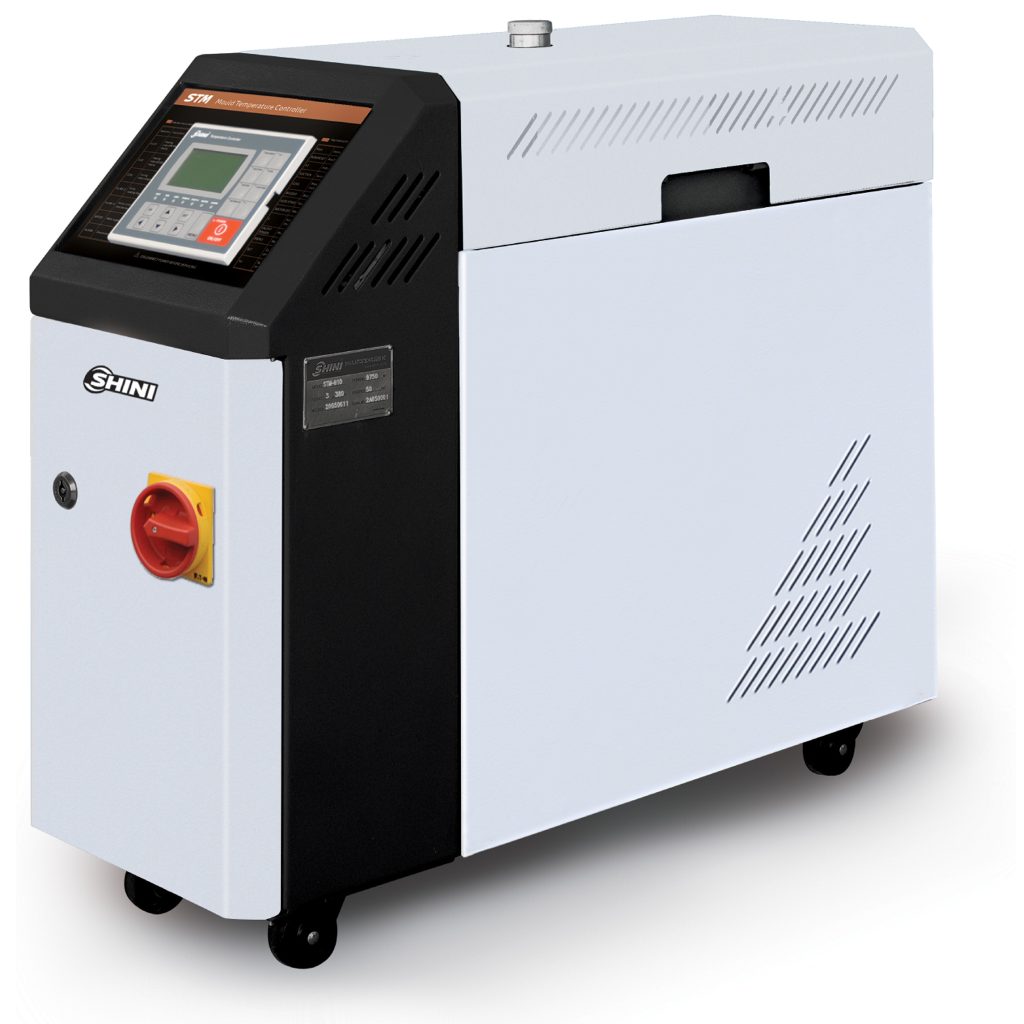

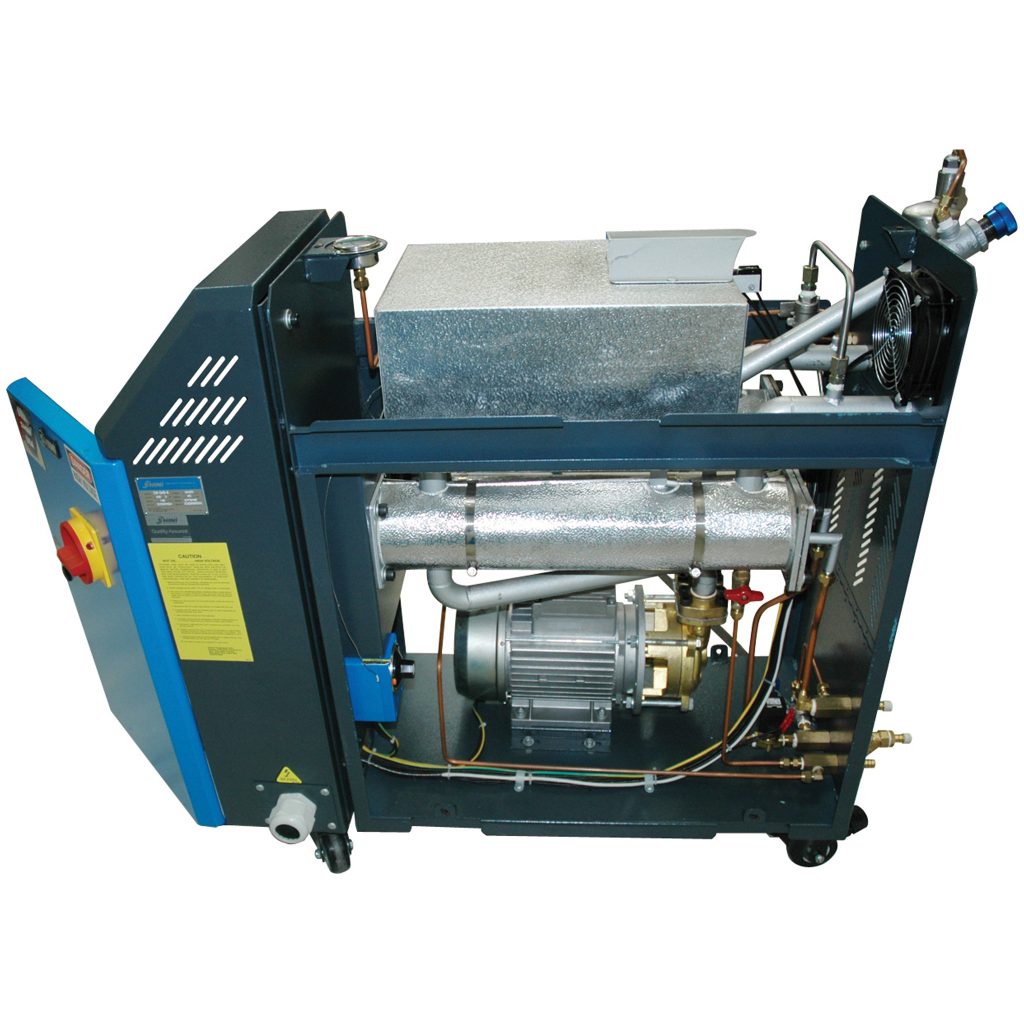

Shini Hot Oil Circulator, 460/60/3, 12kW, 375 F Top Temperature. P.I.D. Multi-Stage Temperature Control, System Can Maintain Mold Temperature, within +/- 1 F Accuracy. Includes Low Level, Pump Overload, and Over-Temperature Alarms. Magnetic "Seal-Less" Drive Pump Discharge Pressure Gauge, Cooling Via Shell and Tube Exchanger, Closed Loop. Model STM-1220-460-M
Specifications
- Maximum Pump Flow - 20 gpm
- 2 hp Magnetic Drive Pump
- High Pressure Stainless Steel Tank
- Stainless Steel Pipe Heater
- 1/8" Din Omron Pid, Duel Controller
- Finger Safe Siemens Electrical Components
- Phase Reverse Protection
- Automatic By-Pass Line
- Automatic Air Vent
