Item # 174910 in Melt Pressure Transducers and Transmitters
$970.00 ea
Description

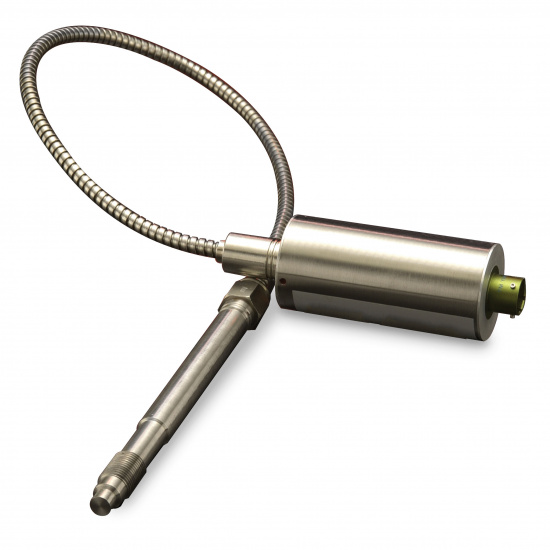

Melt Pressure Transmitter, 4-20 mA, Classic Style, 6" Stem with 18" Flex Hose Capillary, Pressure Range: 0-3,000 psi, NaK Filled Capillary (Mercury Free) for High Temperature Stability.
Specifications
- Mounting: 1/2"-20 UNF Thread
- Diaphragm Material: Inconel
- Max Temp: Diaphragm 1000 F, Electronics 250 F
- Max Error: 1% of Full Scale
- Repeatability: +/- 0.2% ~Accuracy: 0.5%
- Calibration: 80% of Full Scale Output
- Overload Capacity: 2 Times Full Scale Output
- Measuring Sensor: 350 ohm Wheatstone Bridge
- Connector: 6 Pin Bayonet Connector
- Mounting Torque: 150 - 500 Inch Pounds
